Eastern Bikes

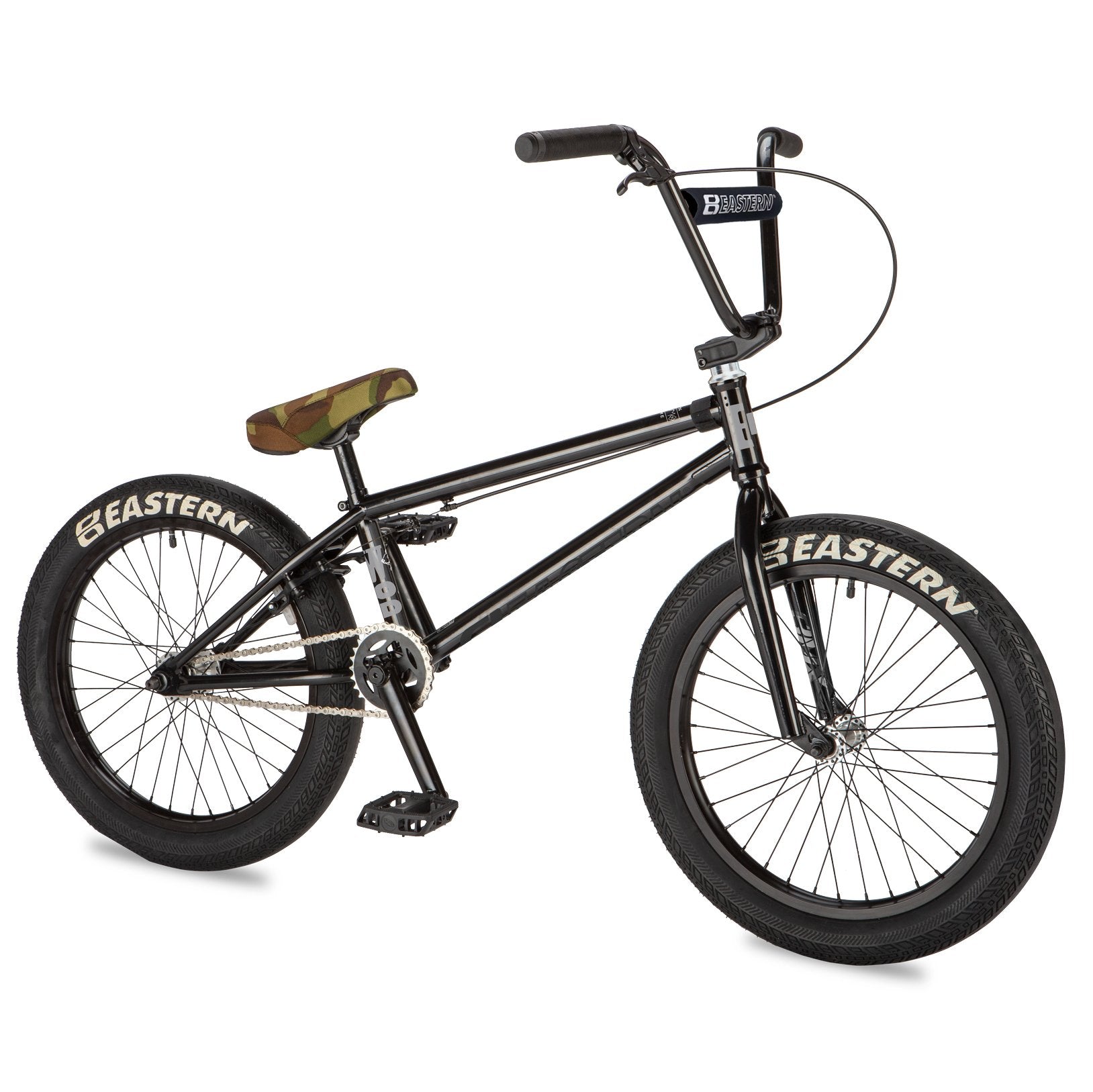

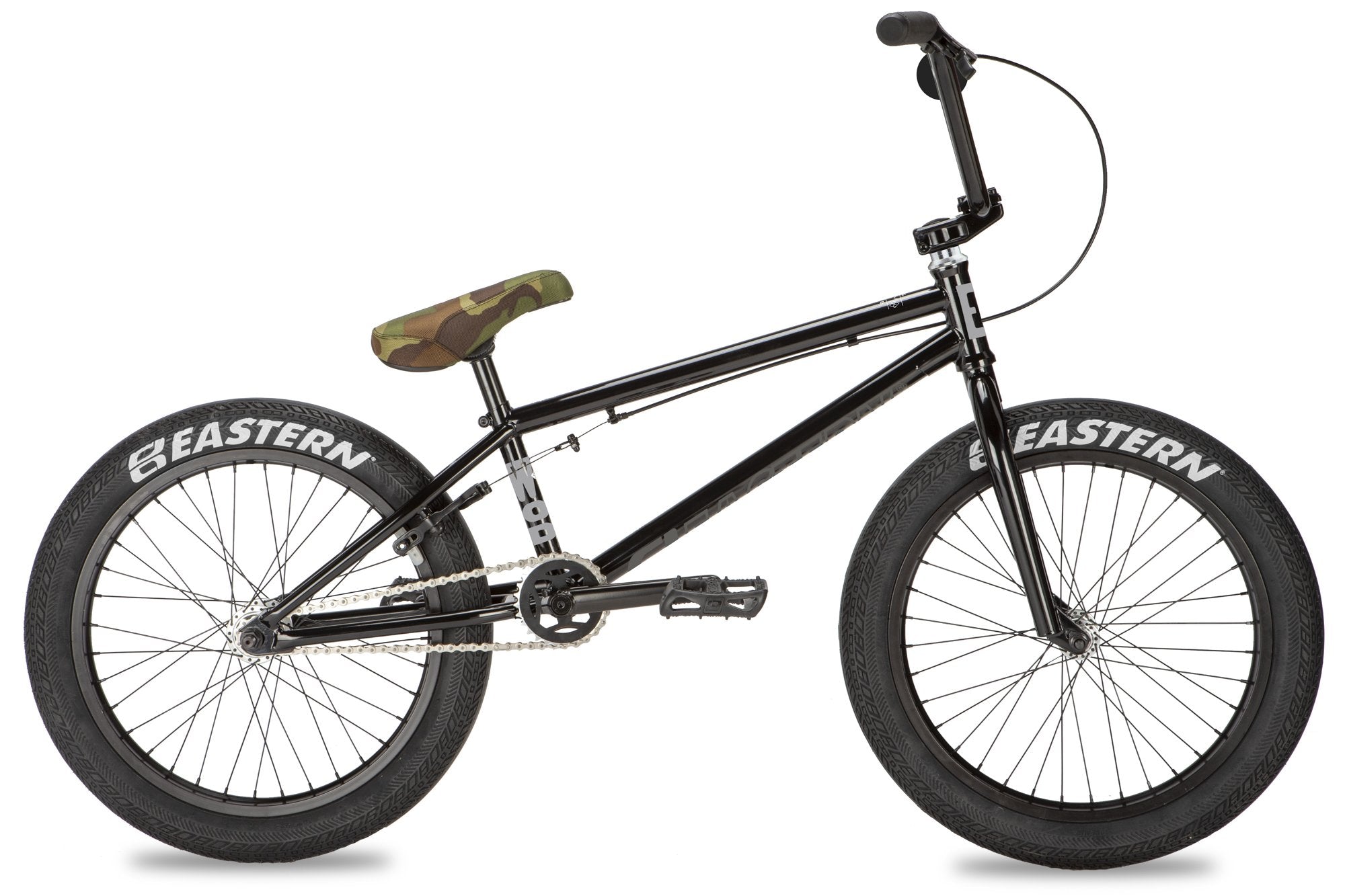

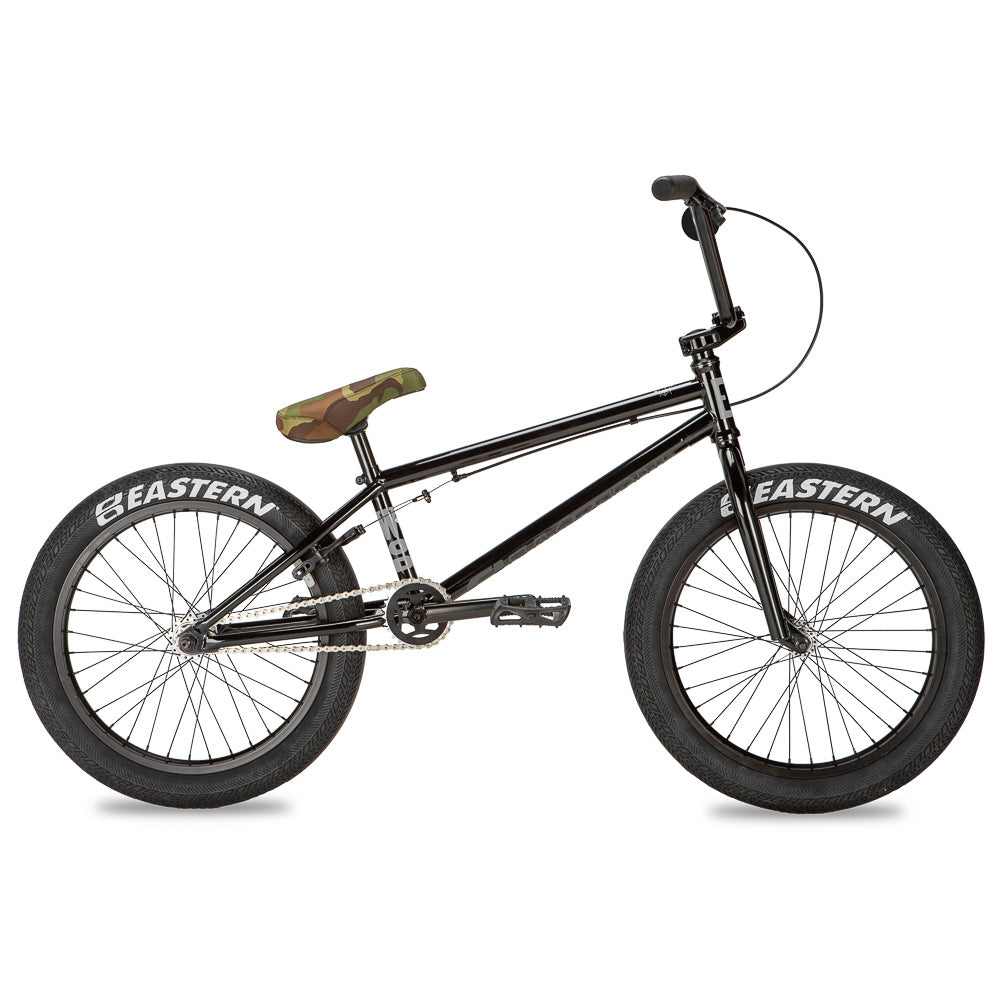

Wolfdog - Black

Wolfdog - Black

$190.00 USD
$395.99 USD $190.00 USD
Sale Sold out
Color

The intermediate level Eastern Wolfdog is a great bike for riders wanting to up their ride. Built with a full chromoly frame and fork, a sealed bearing integrated headset, sealed front & rear hubs, a 3-piece chromoly cranks, chromoly sprocket, double wall rims plus Eastern Facet pedals and Squealer tires.

chromo-frame-logo-1  chromo-frame-fork-bars-logo-1    3pc-cranks-logo-1  chromo-frame-fork-bars-logo-1    logo-int-headset-1   pivotal-logo-1  logo-double-rim-1  mid-bb-logo-1  squealer-tire-logo-1Eastern Riblet Grips

25.6 Lbs

    • Full Chromoly Frame
    • Chromoly Fork
    • Sealed Front and Rear Hubs
    • 3 Piece Tubular Chromoly Cranks
    • Mid BB
    • Integrated Headset
    • Double Wall Front and Rear Rims
    • Eastern Riblet Grips
    • Chromoly Eastern Phorcys Sprocket
    • Pivotal Seat
    • 2.4" Eastern Squealer OEM Tires
    • Eastern Facet Pedals

*NOTICE: Once a bike ships the order can not be refunded

FRAME

Wolfdog 20"
Full Chromoly Frame
Top Tube Size: 20.75″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame

BARS

Hi-Ten 8.85"
Upsweep/Backsweep 12⁰/1⁰

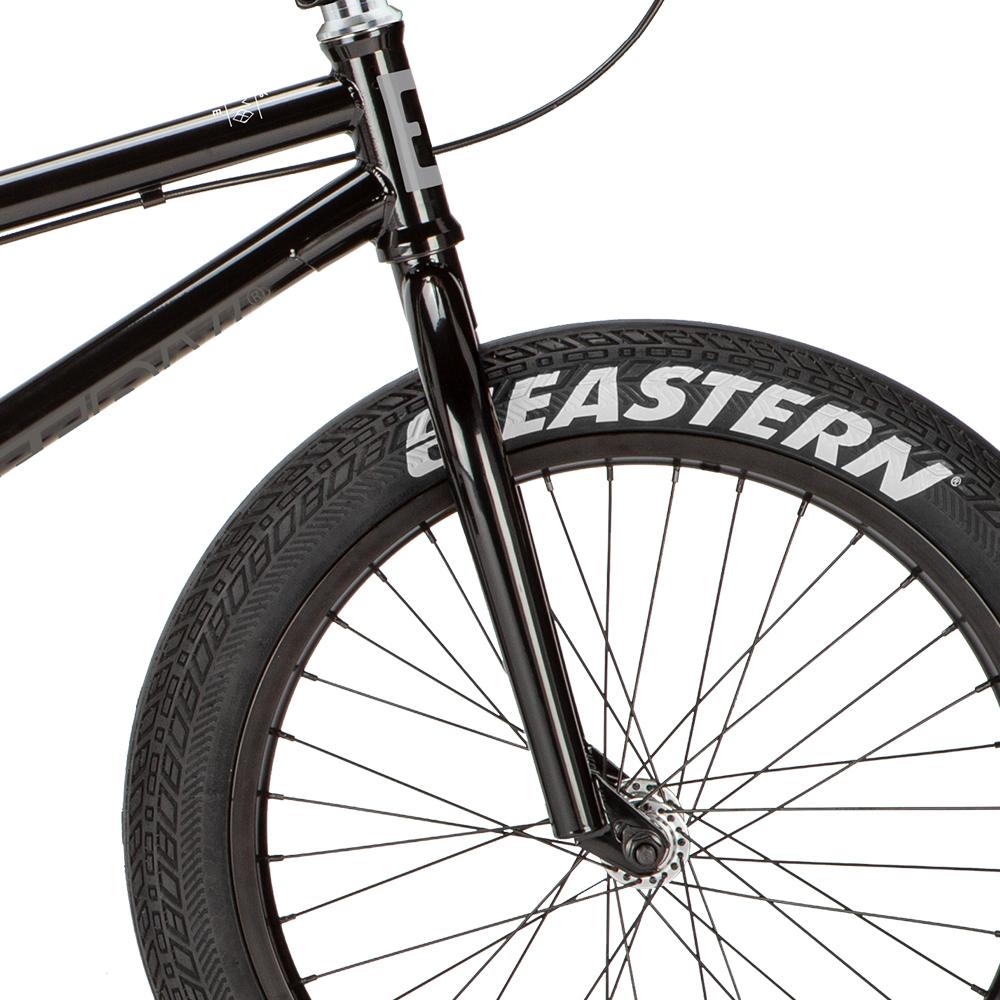

FORK

Wolfdog 20”, - Full Chromoly
Fork Rake: 28mm

HEADSET Integrated 45°X45° Sealed Cartridge Bearing

STEM Forged Alloy Top Load Stem

GRIP Eastern Riblet Grips

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm  31.8mm Round Arm

BOTTOM BRACKET Sealed Bearing Mid

CHAINWHEEL Eastern Phorcys, Chromoly, 25T

CHAIN KMC Z510 1/2 x 1/8

PEDAL Eastern Facet Pedal with 9/16" Chromoly Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

SADDLE Medium Width Pivotal Seat

POST Pivotal, Forged Alloy, 200mm

FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8″ Chromoly Axle

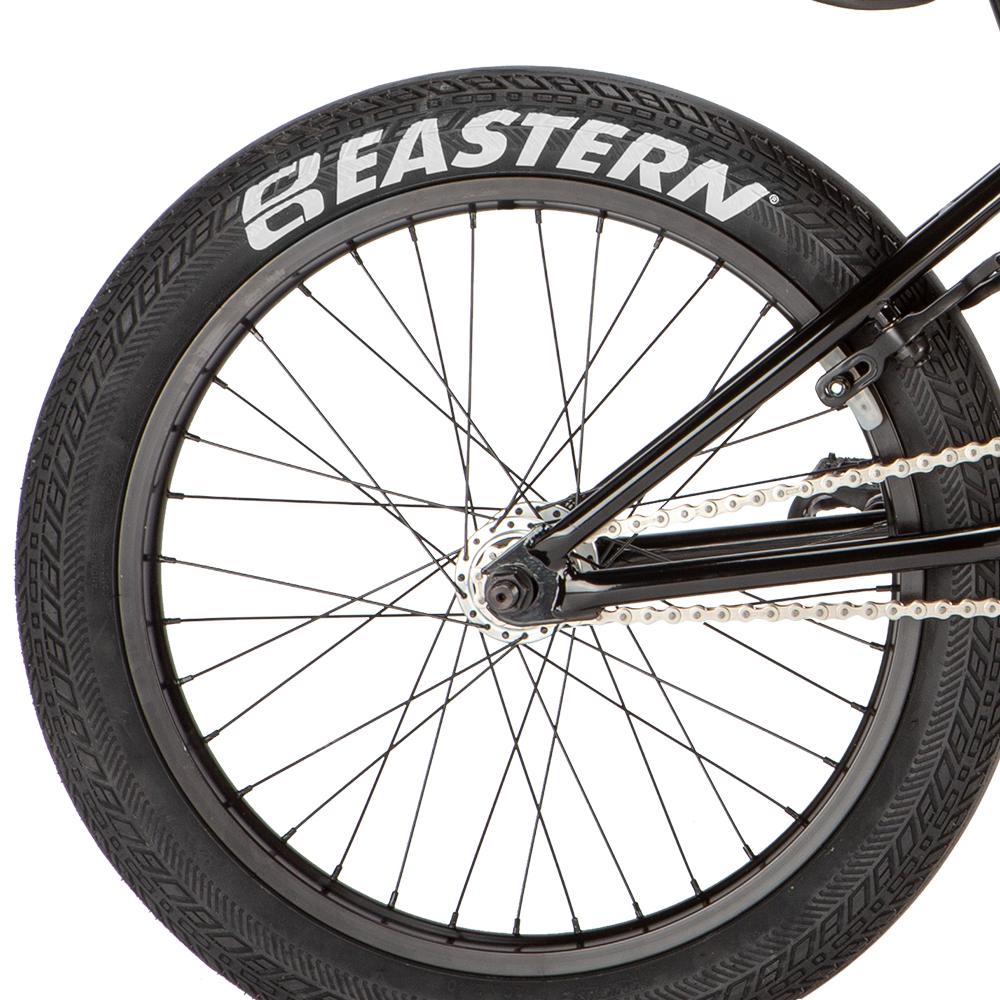

REAR HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 14mm Chromoly Axle

FREEWHEEL 9 Tooth Driver with Hub

FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires

REAR RIM Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE Eastern Squealer OEM 20 x 2.40

REAR TIRE Eastern Squealer OEM 20 x 2.40

PEG none

Bikes are designed for riders 13 years old and up. *This pricing valid in USA only. Specs & pricing Subject to Change
