Eastern Bikes

Reaper

Reaper

Regular price $349.99 USD
Regular price $539.99 USD Sale price $349.99 USD
Sale Sold out
Color

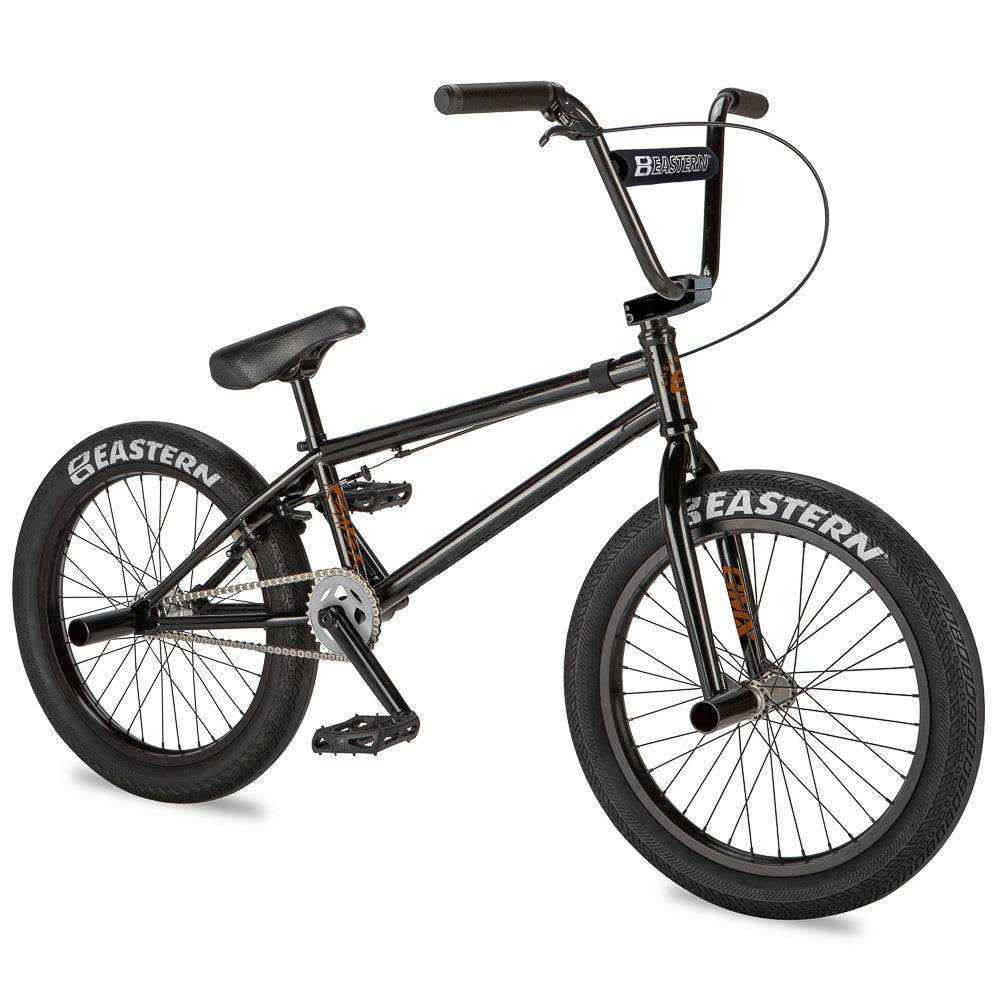

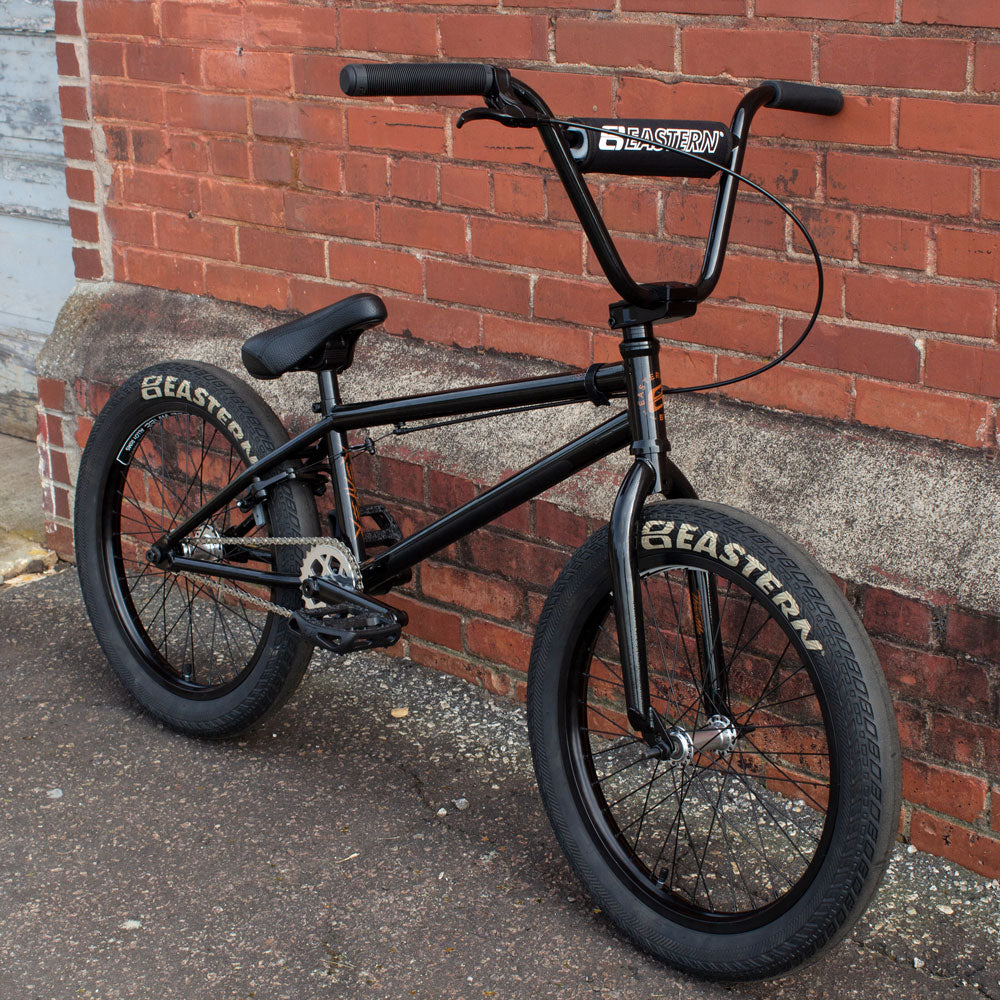

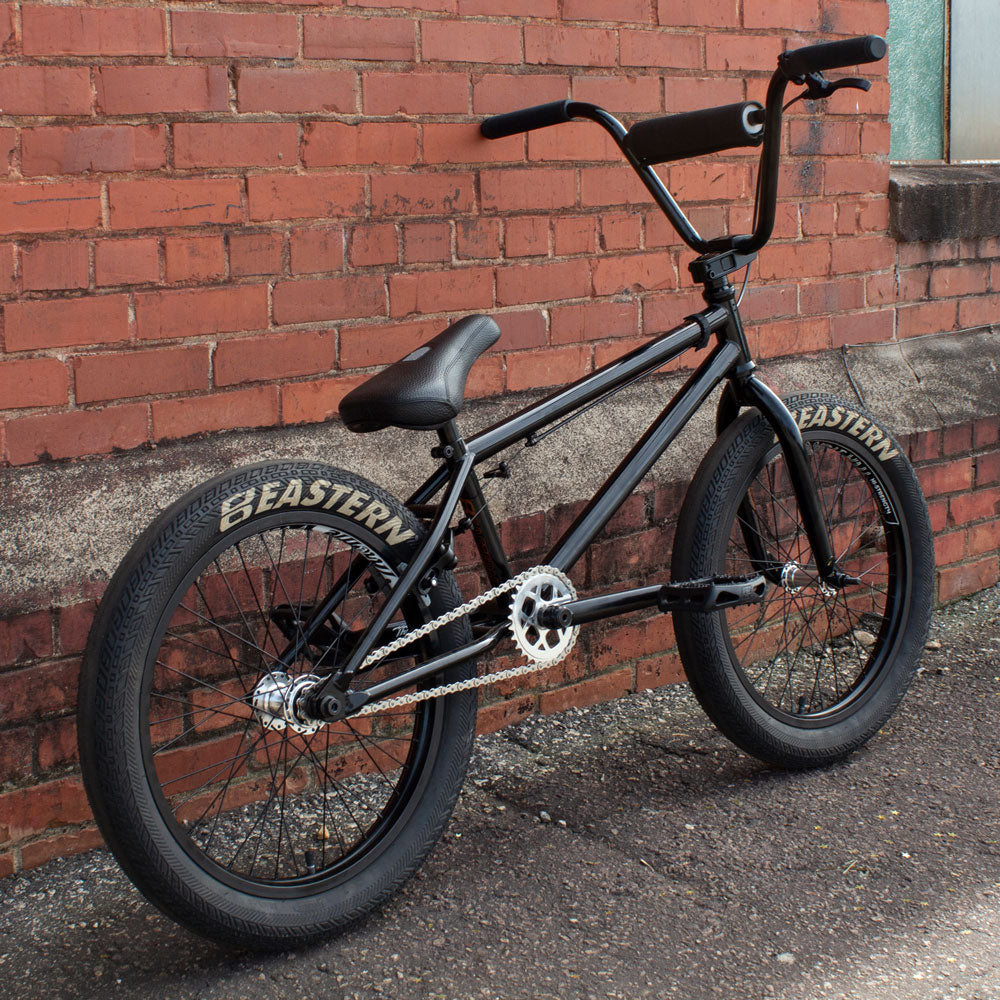

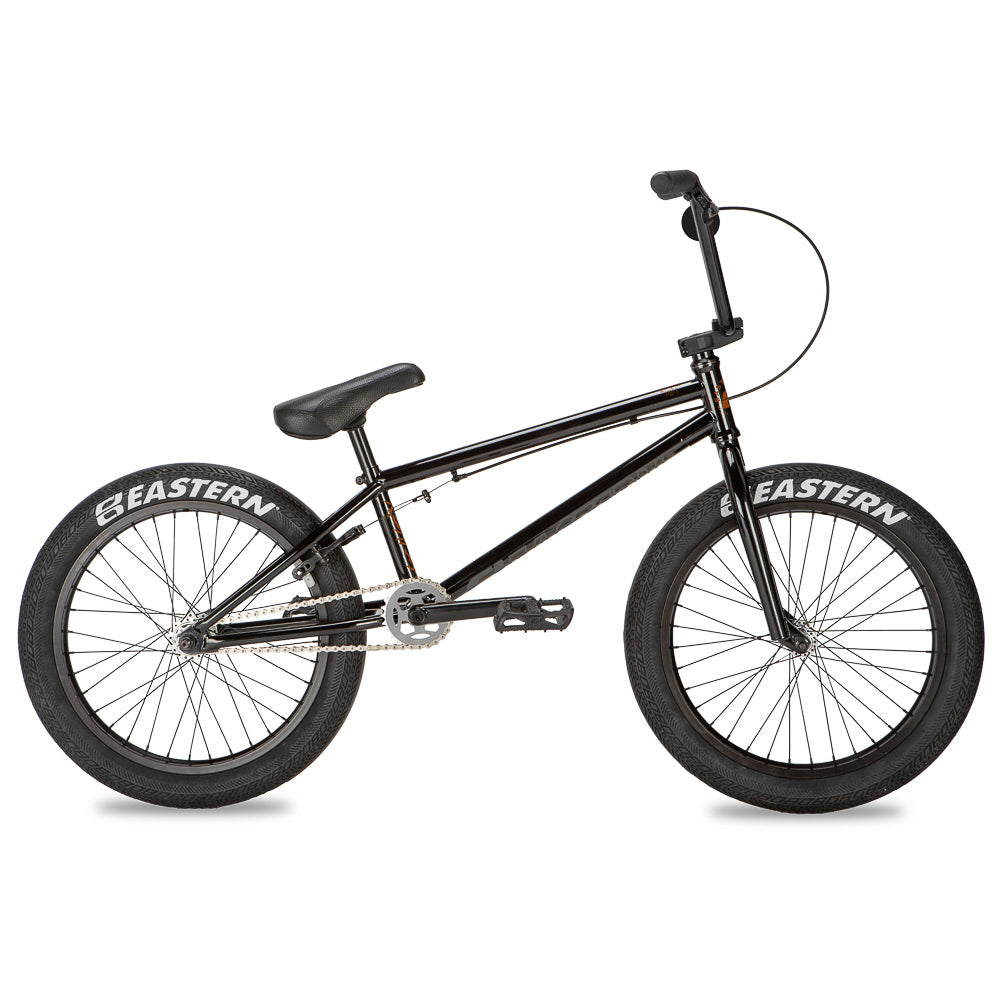

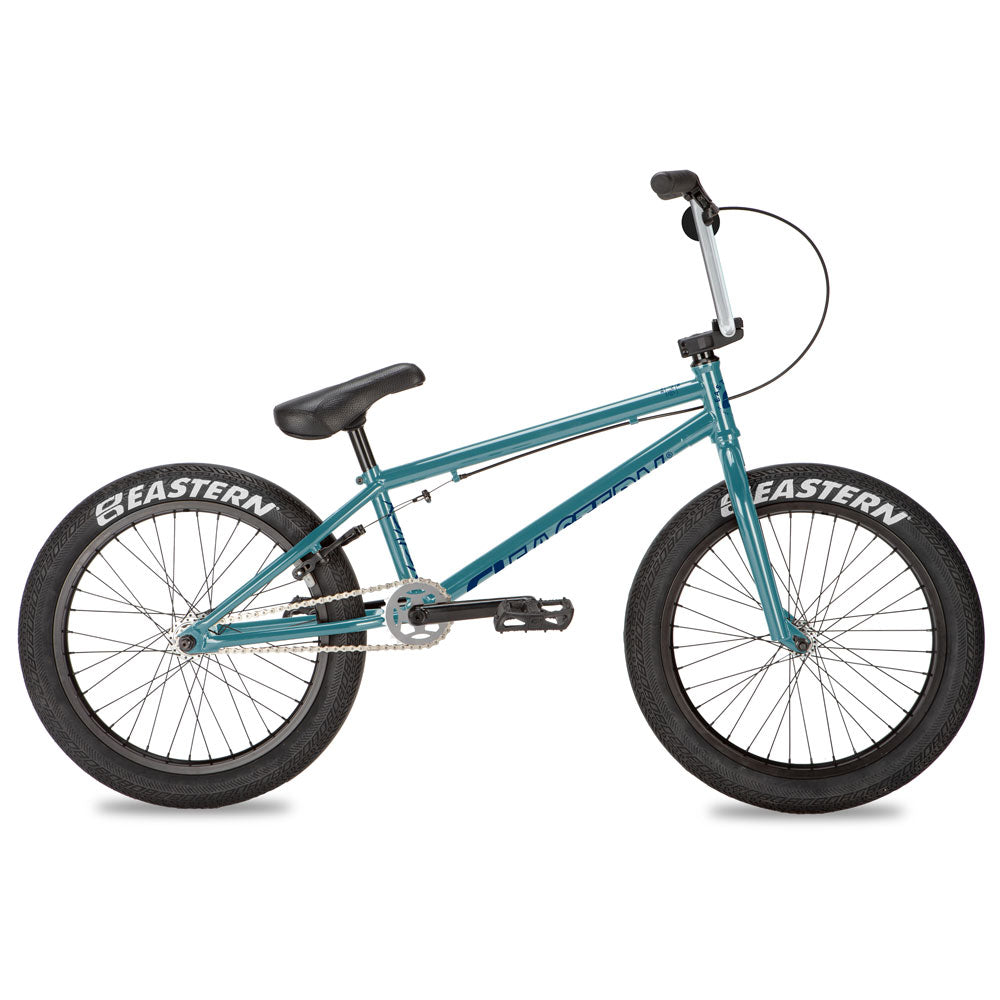

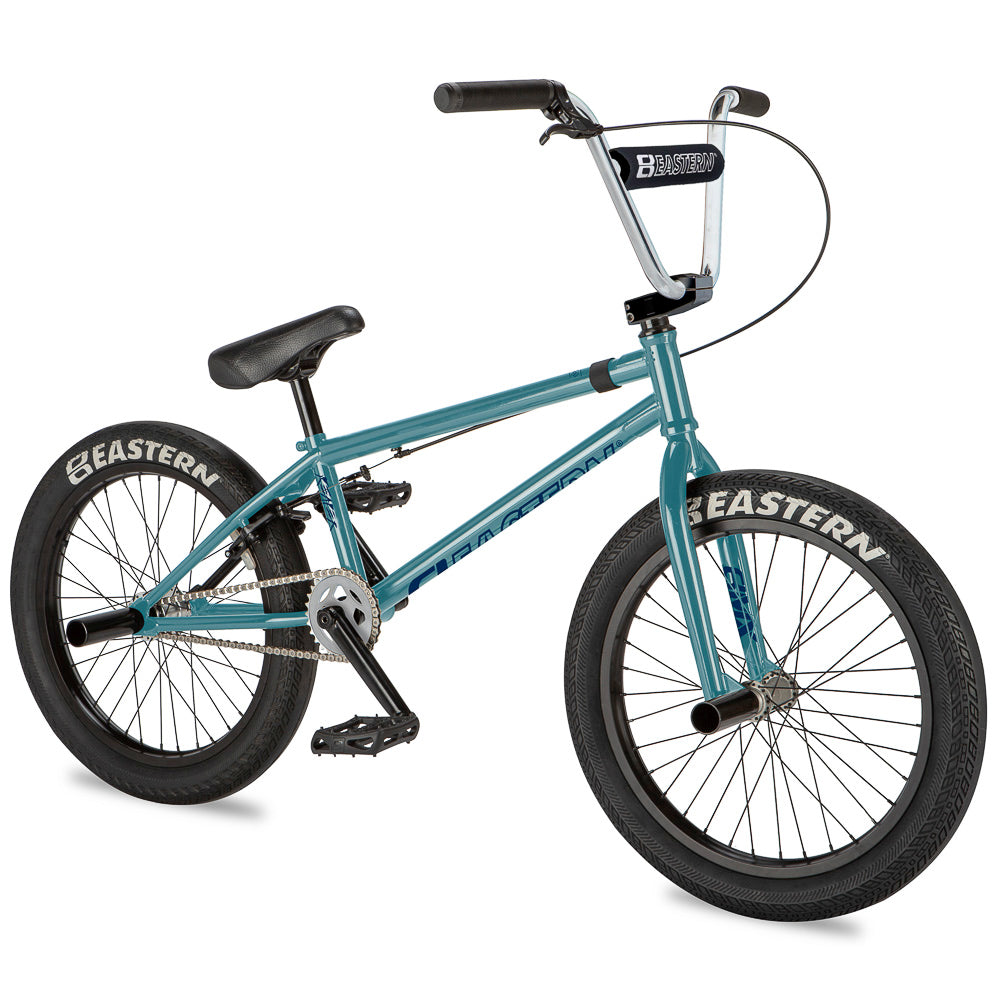

The pro level Eastern Reaper features a full chromoly frame with Helix downtube for higher strength, plus chromoly fork and bars for lightweight performance. The Reaper is dialed in with fully sealed hubs, 3-piece 48 Spline cranks, Squealer 100psi tires, alloy sprocket, double wall rims, steel pegs and Facet pedals.

chromo-frame-logo-1   chromo-frame-fork-bars-logo-1  chromo-frame-bars-logo-1      3pc-cranks-logo-1    chromo-frame-fork-bars-logo-1    logo-int-headset-1   logo-double-rim-1   mid-bb-logo-1  pivotal-logo-1   pivotal-logo-1 mid-bb-logo-1

25.6 Lbs

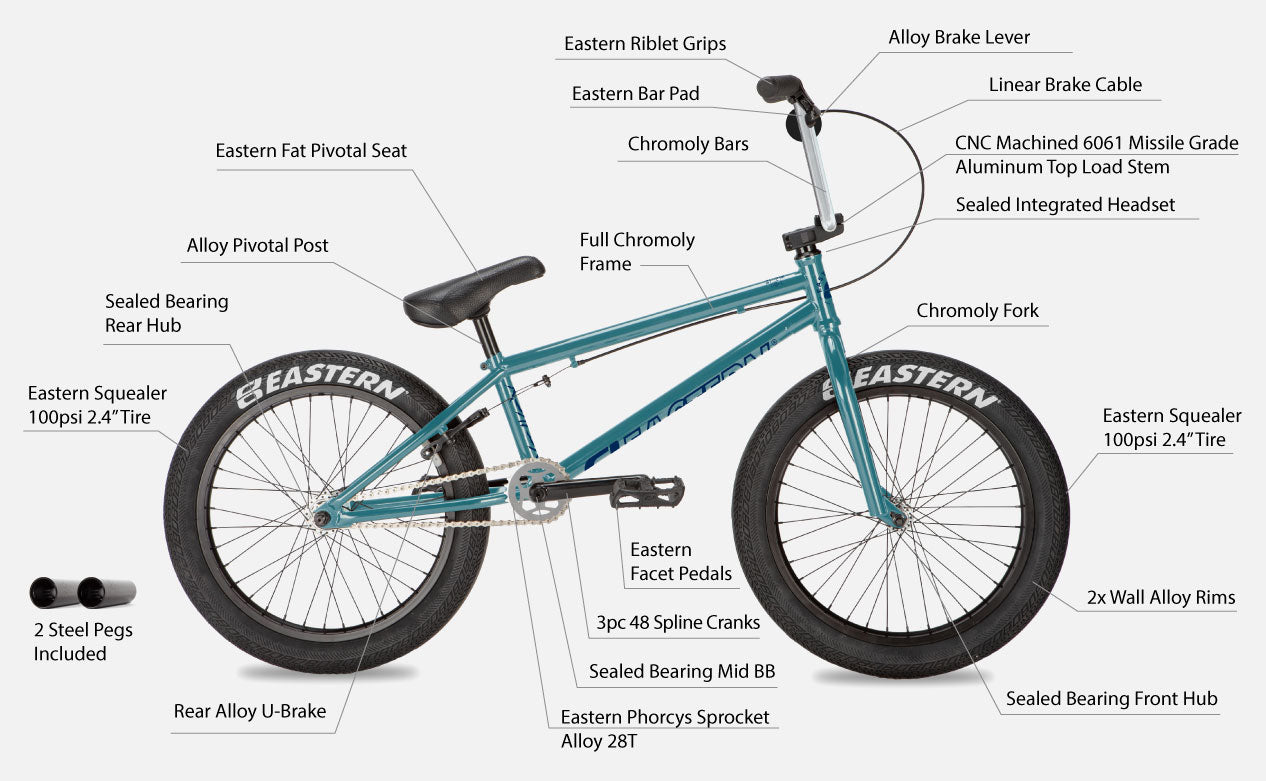

    • Chromoly Frame with Helix DT
    • Chromoly Fork w/ 1pc Steerer Tube
    • Chromoly Bars
    • Sealed Hubs
    • 3 Piece 48 Spline Cranks
    • Mid BB
    • Integrated Headset
    • Eastern Grips
    • Alloy Eastern Phorcys Sprocket
    • Pivotal Seat
    • Double Wall Front and Rear Rims
    • 2.4" Eastern Squealer 100psi Tires
    • Eastern Facet Pedals
    • 2 Steel Pegs

*NOTICE: Once a bike ships the order can not be refunded

FRAME

Reaper 20", Full Chromoly with Helix Downtube, Removable Brake Mounts, Mid BB, Internal Headset
Top Tube Size: 21″
Chainstay Length: 13.5″
Seattube Length: 8.25"
BB: Mid
Headtube: Integrated
Clamp: Integrated with Frame

BARS

Full Chromoly 9.0"
Upsweep/Backsweep 12⁰/1⁰

FORK

Reaper 20", Full Chromoly with 1pc CNC'd Steerer Tube
Fork Rake: 28mm

HEADSET Integrated 45°X45° Sealed Cartridge Bearing

STEM CNC Machined 6061 Missile Grade Aluminum Top Load Stem

GRIP Eastern Riblet Grips

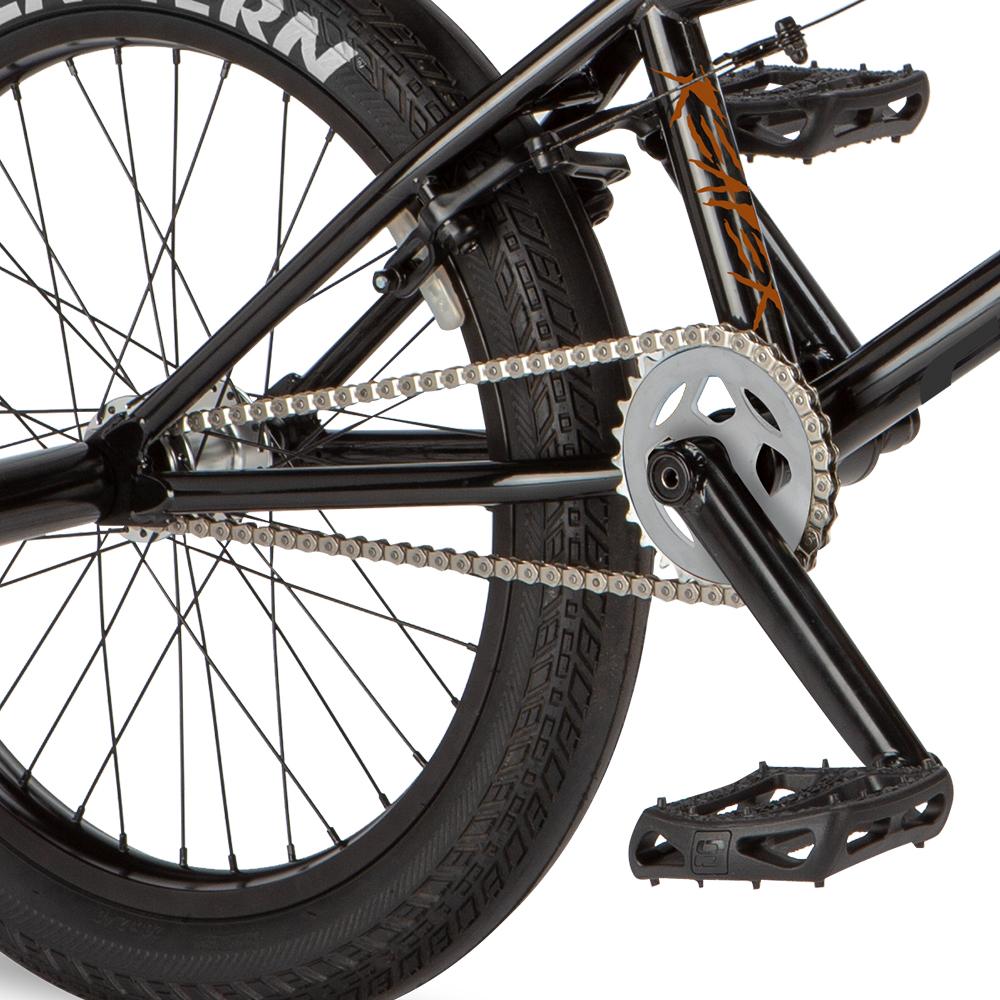

CRANK 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length

BOTTOM BRACKET Sealed Bearing Mid

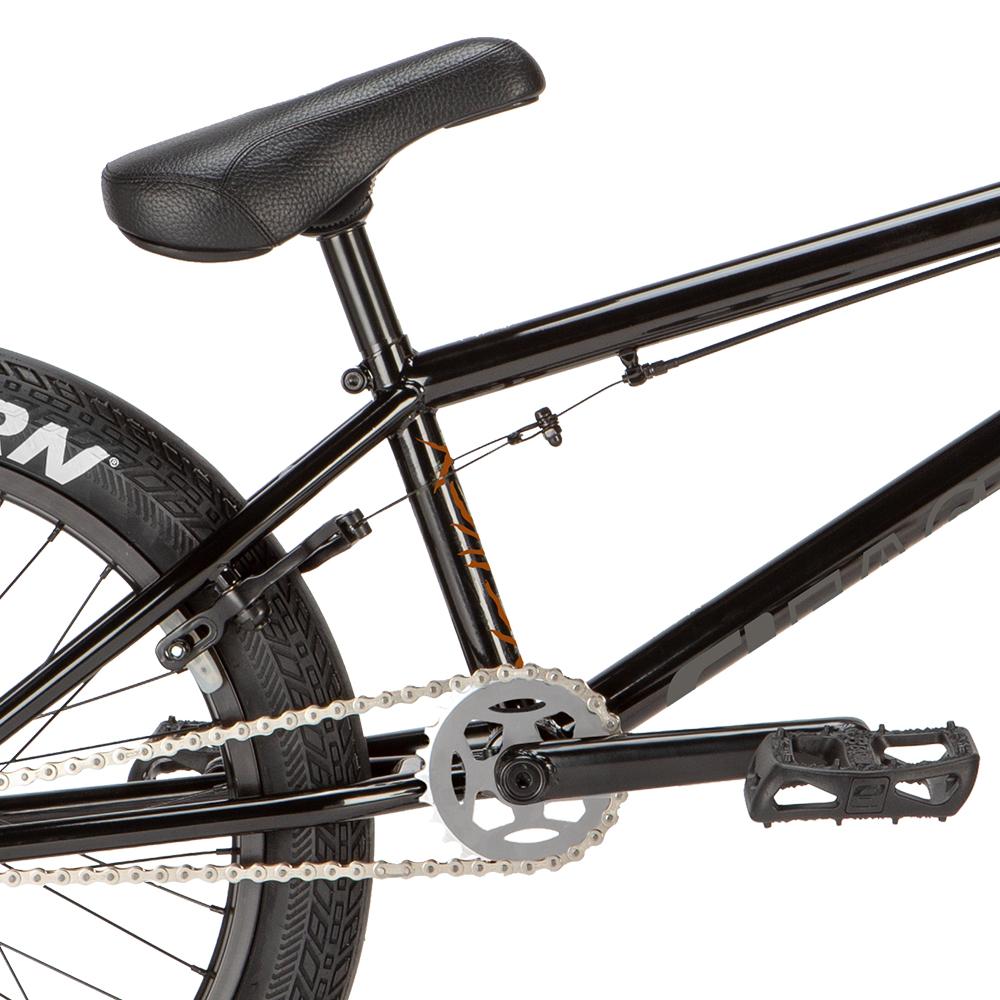

CHAINWHEEL Eastern Phorcys, Alloy, 28T

CHAIN KMC Z510 1/2 x 1/8

PEDAL Eastern Facet pedal with 9/16" Chromoly Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

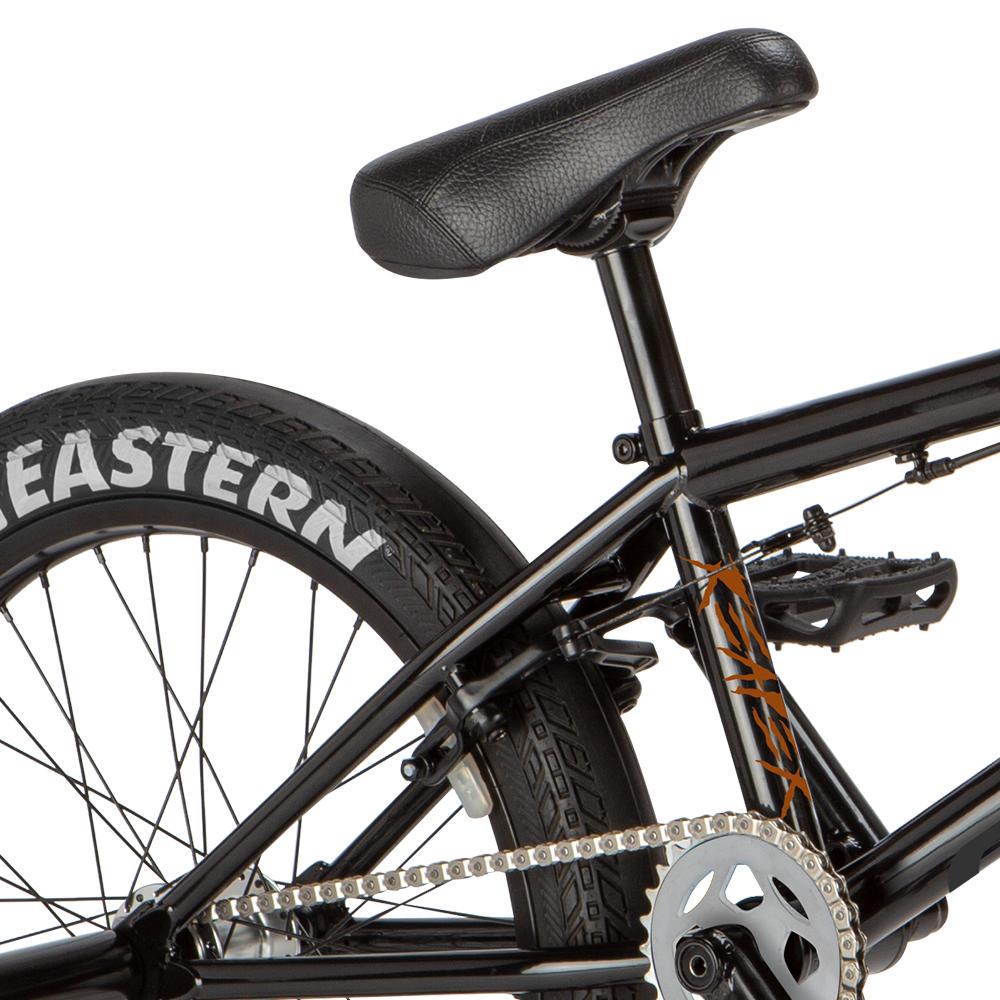

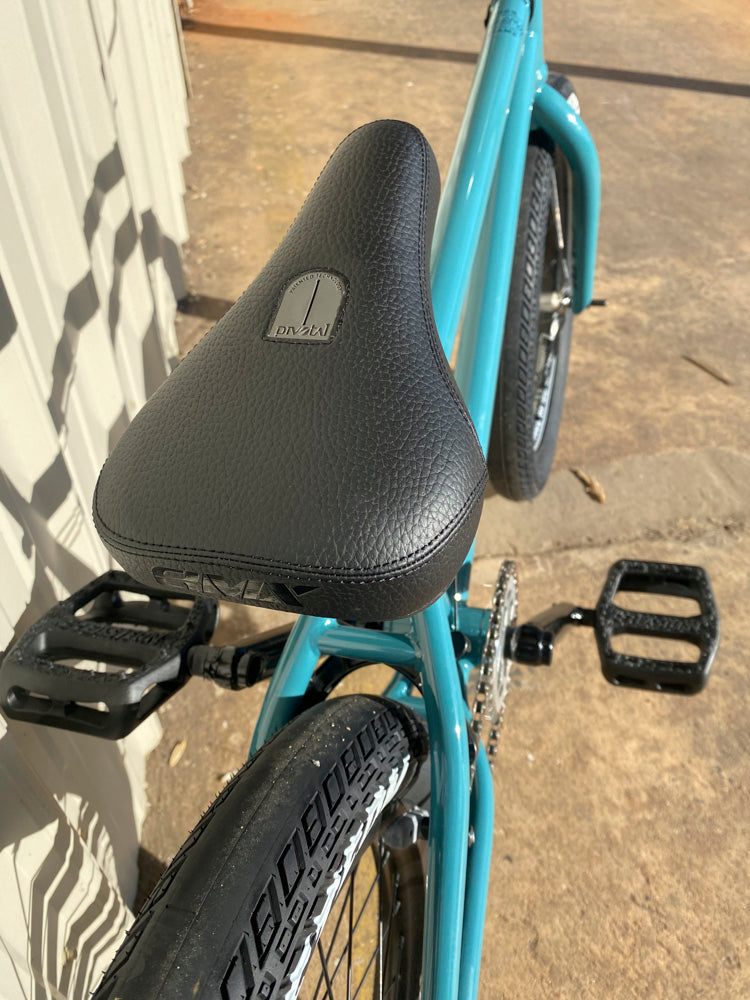

SADDLE Medium Width Pivotal Seat

POST Pivotal, Alloy, 200mm

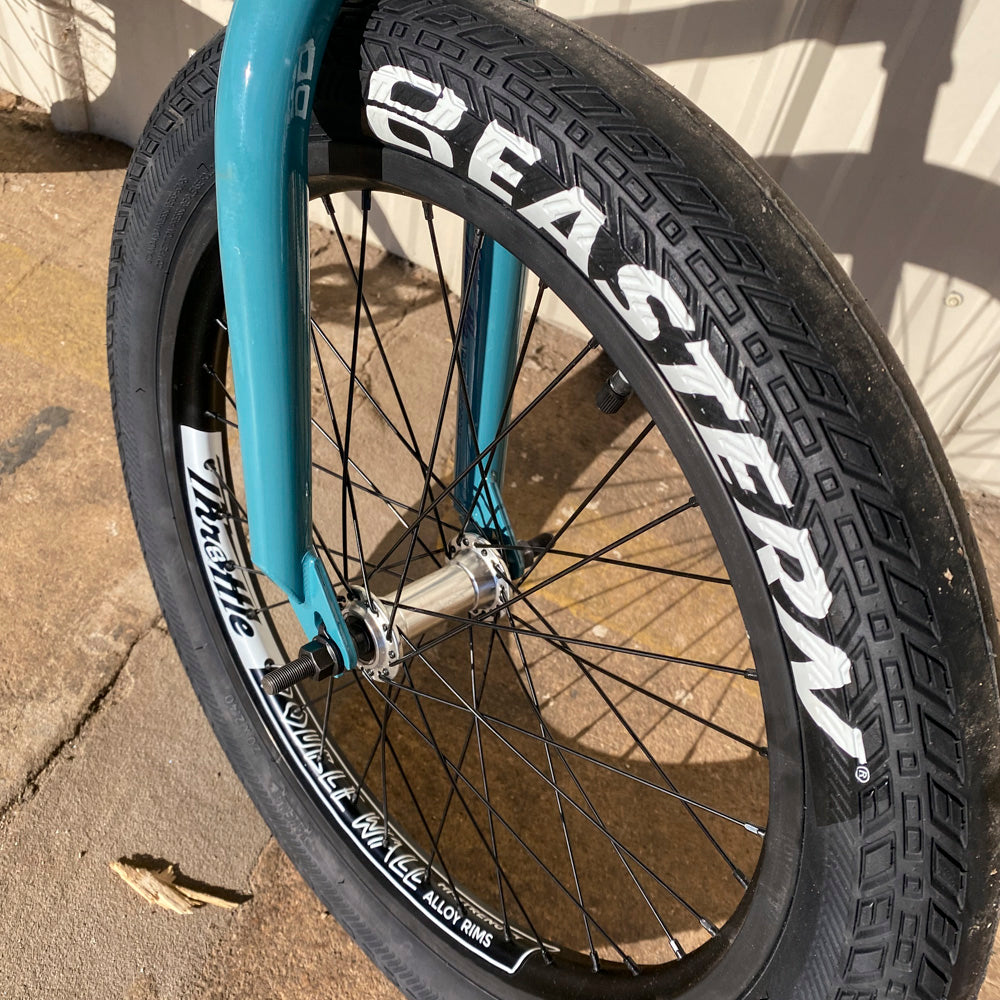

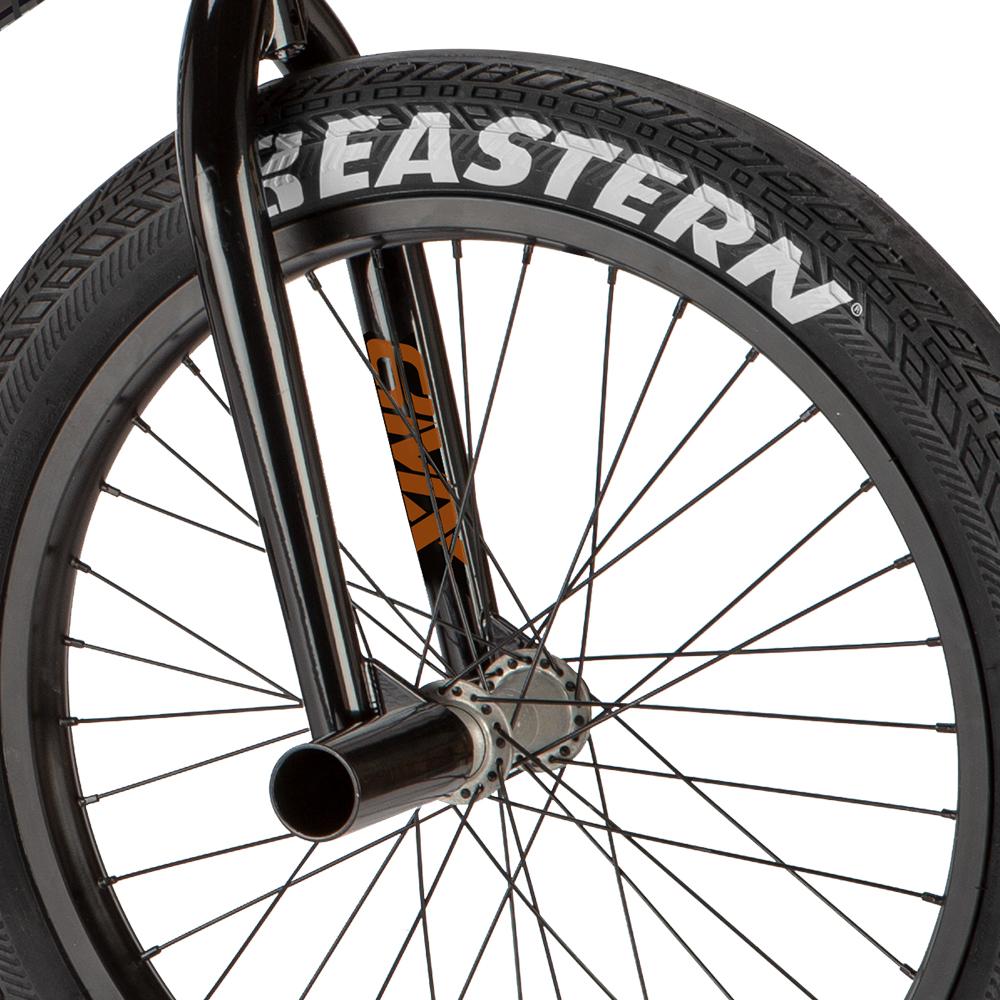

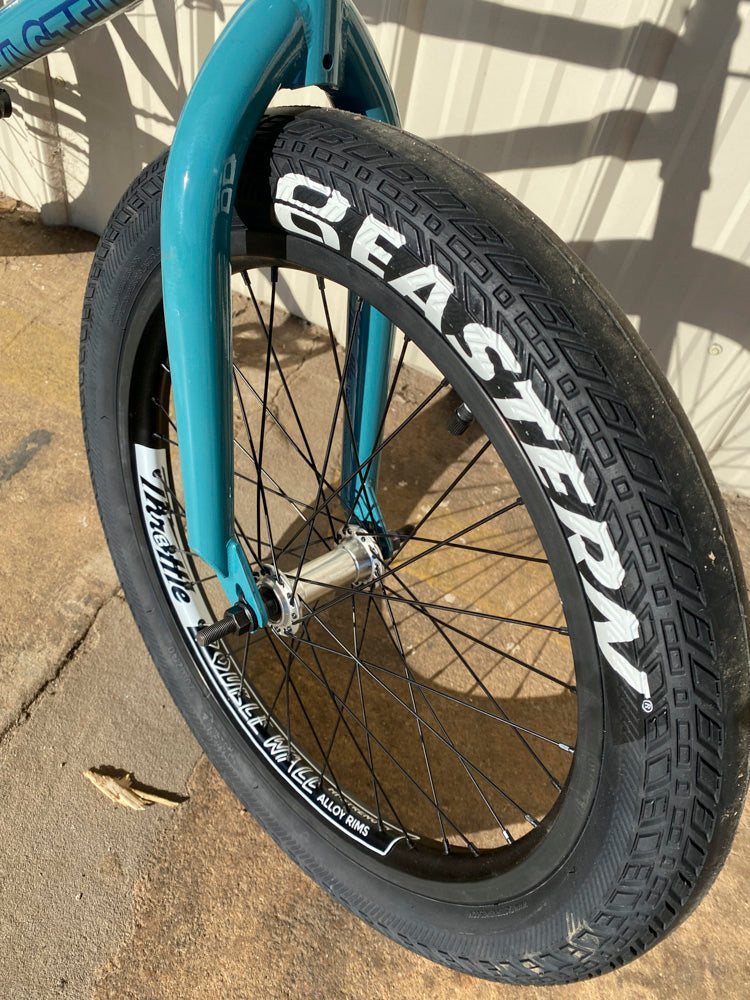

FRONT HUB Sealed Bearing, Forged Alloy Shell, Drilled for 36
Spokes, 3/8" Chromoly Axle

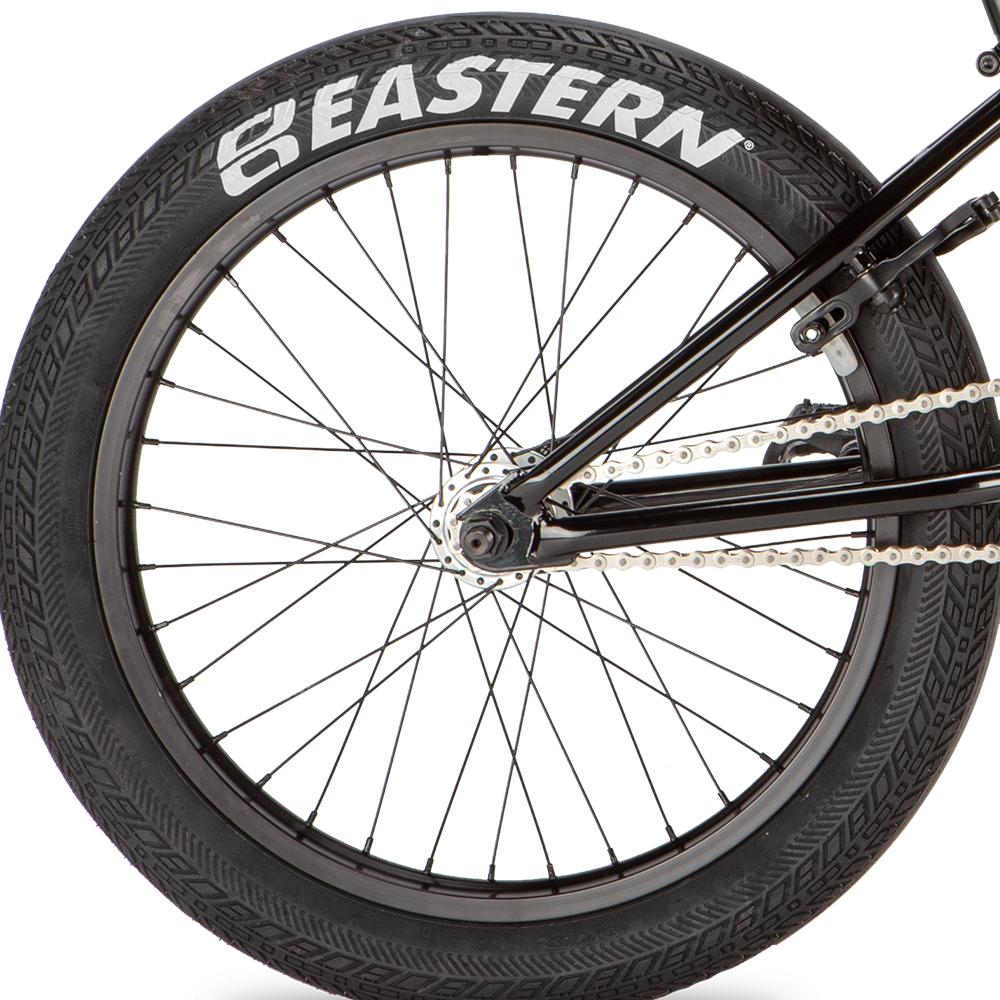

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for
36 Spokes, 14mm Chromoly Axle

FREEWHEEL 9 Tooth Sealed Driver with Hub

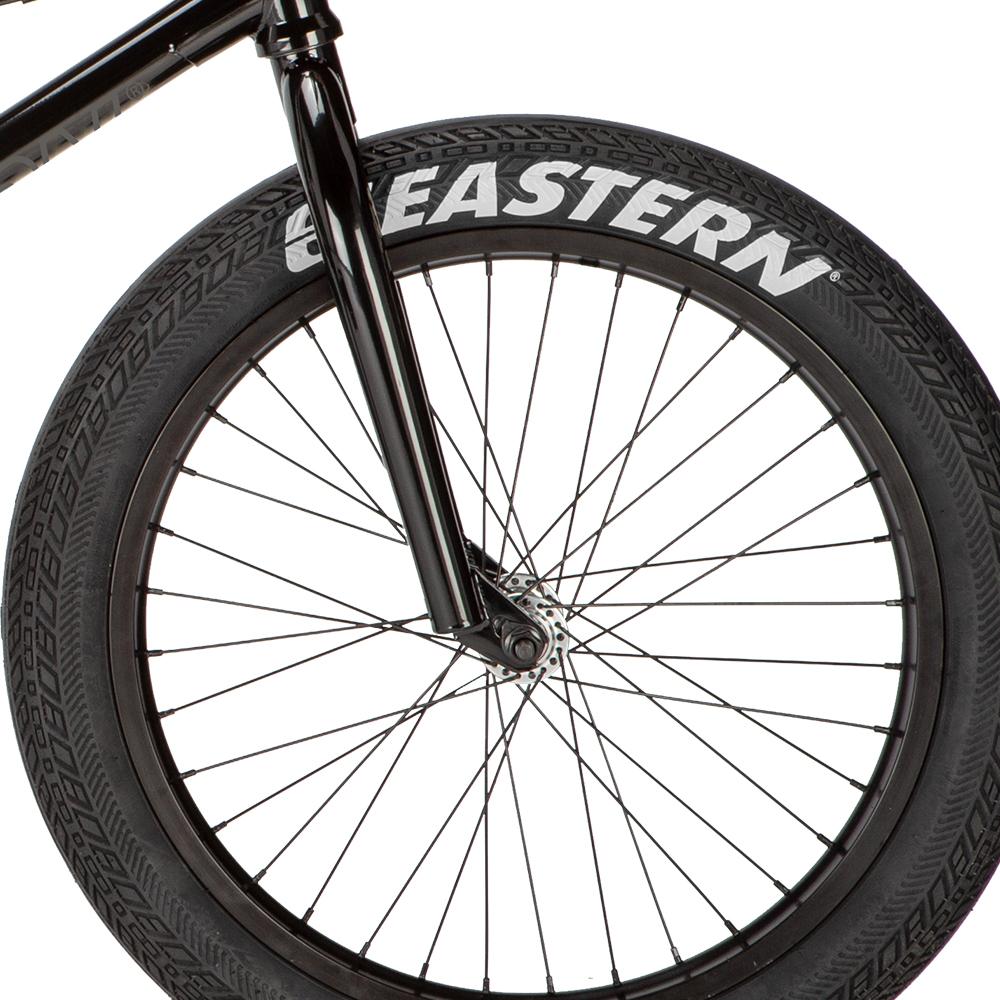

FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes,  For 20" Tires

REAR RIM Alloy, Double Wall, Drilled for 36 Spokes,  For 20" Tires

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE Eastern Squealer 100psi 20 x 2.40

REAR TIRE Eastern Squealer 100psi 20 x 2.40

PEG Steel Pegs (2pcs)

Bikes are designed for riders 13 years old and up. *This pricing valid in USA only. Specs & pricing Subject to Change
