Reaper
Reaper

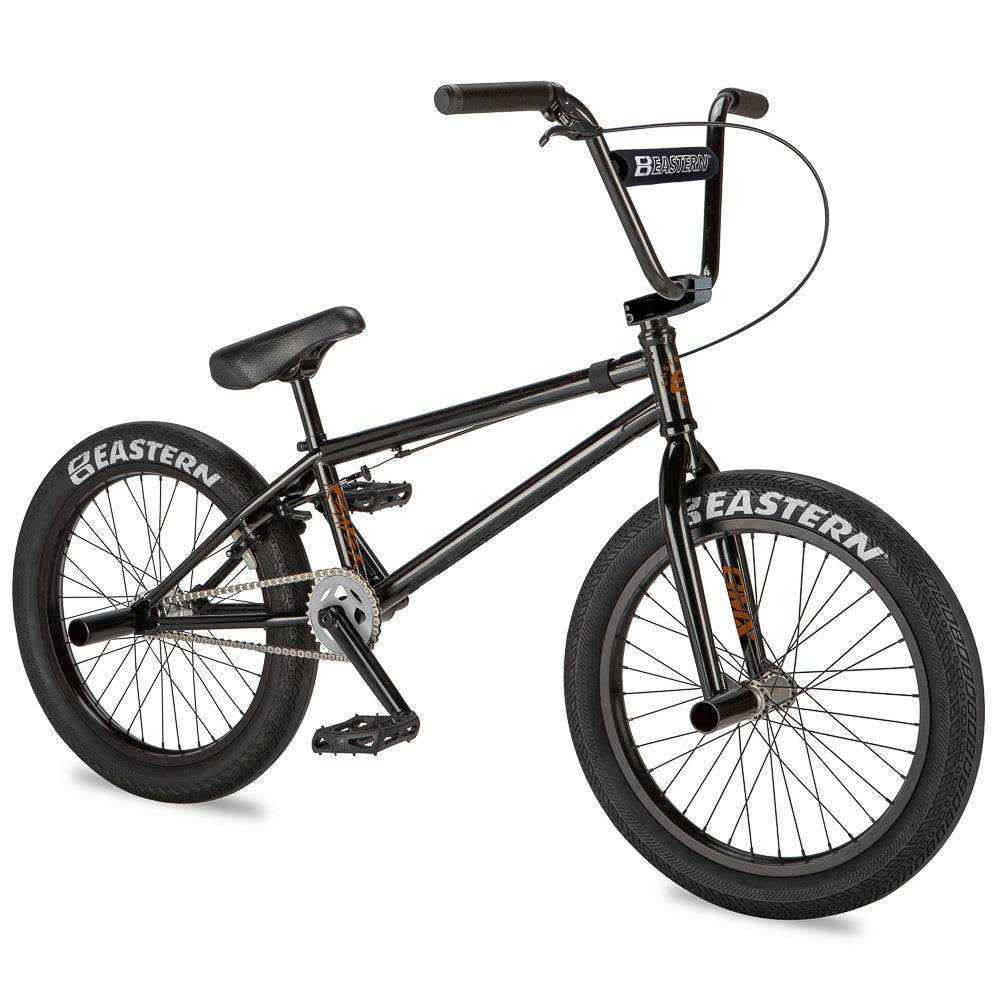

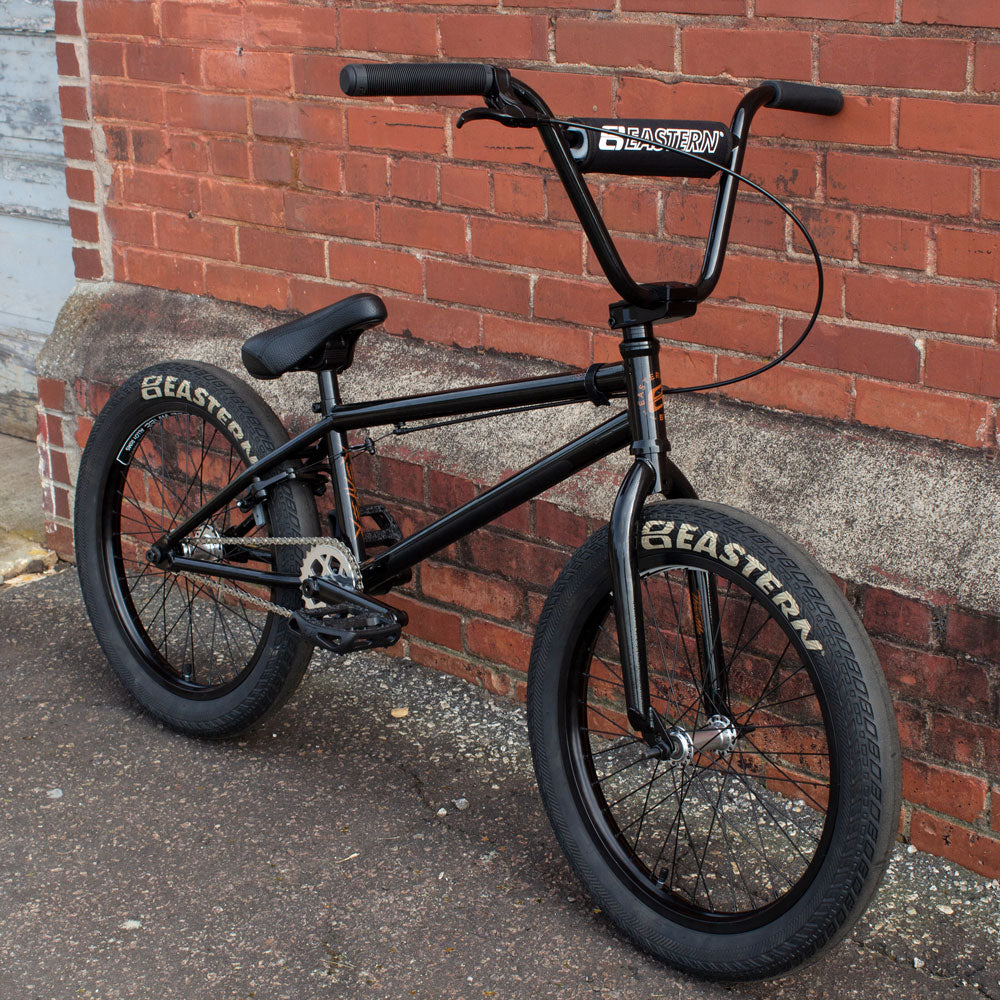

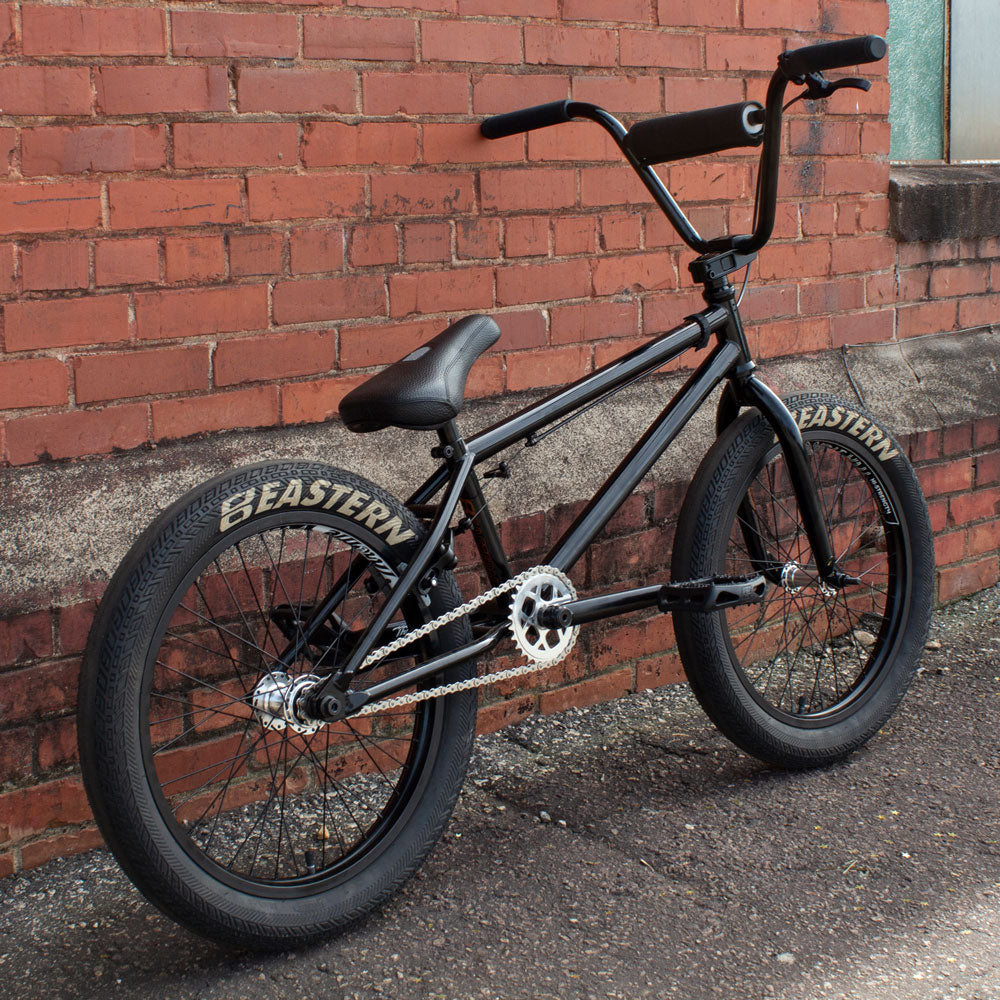

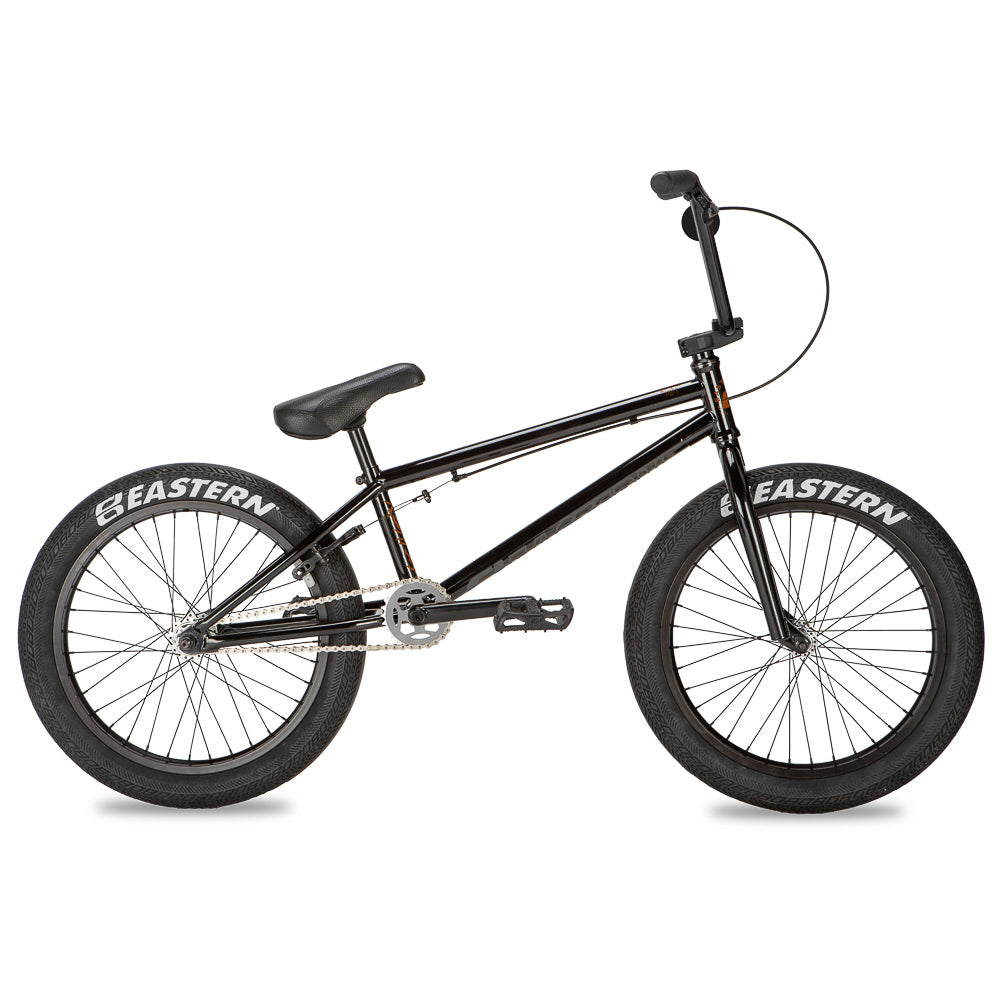

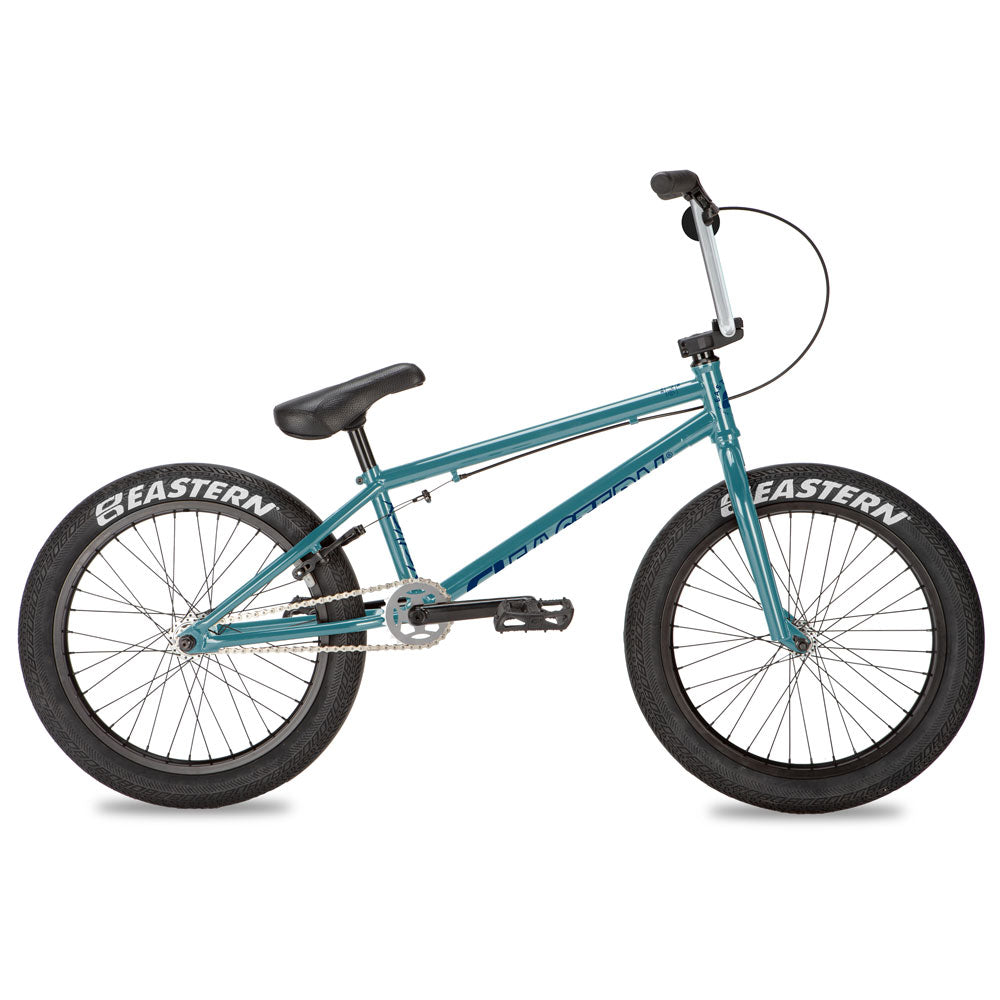

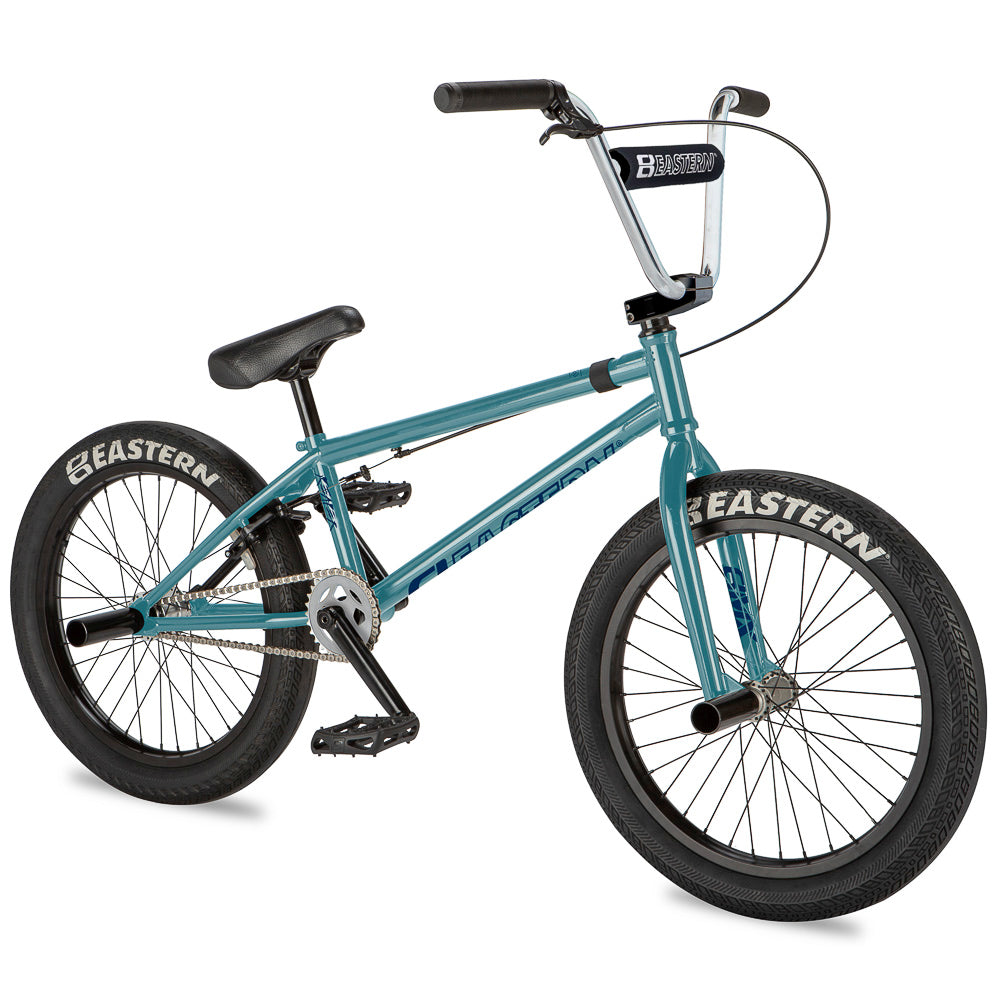

The pro level Eastern Reaper features a full chromoly frame with Helix downtube for higher strength, plus chromoly fork and bars for lightweight performance. The Reaper is dialed in with fully sealed hubs, 3-piece 48 Spline cranks, Squealer 100psi tires, alloy sprocket, double wall rims, Eastern Slim Pegs and Facet pedals.
25.6 Lbs

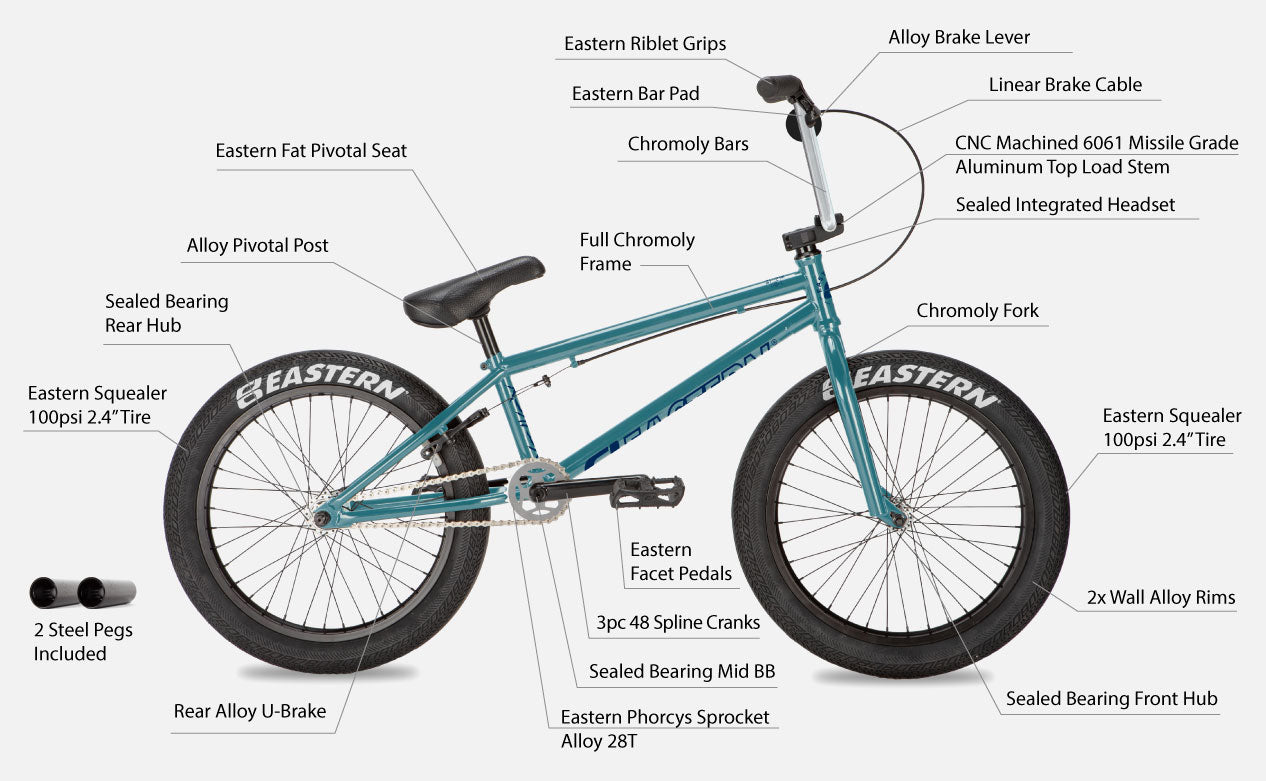

- Chromoly Frame with Helix DT
- Chromoly Fork w/ 1pc Steerer Tube
- Chromoly Bars
- Sealed Hubs
- 3 Piece 48 Spline Cranks
- Mid BB
- Integrated Headset
- Eastern Grips
- Alloy Eastern Phorcys Sprocket
- Pivotal Seat
- Double Wall Front and Rear Rims
- 2.4" Eastern Squealer 100psi Tires
- Eastern Facet Pedals
- 2 Eastern Slim Pegs
*NOTICE: Once a bike ships the order can not be refunded
Reaper 20", Full Chromoly with Helix Downtube, Removable Brake Mounts, Mid BB, Internal Headset
Top Tube Size: 21″
Chainstay Length: 13.5″
Seattube Length: 8.25"
BB: Mid
Headtube: Integrated
Clamp: Integrated with Frame
Full Chromoly 9.0"
Upsweep/Backsweep 12⁰/1⁰
Reaper 20", Full Chromoly with 1pc CNC'd Steerer Tube
Fork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing
STEM CNC Machined 6061 Missile Grade Aluminum Top Load Stem
GRIP Eastern Riblet Grips

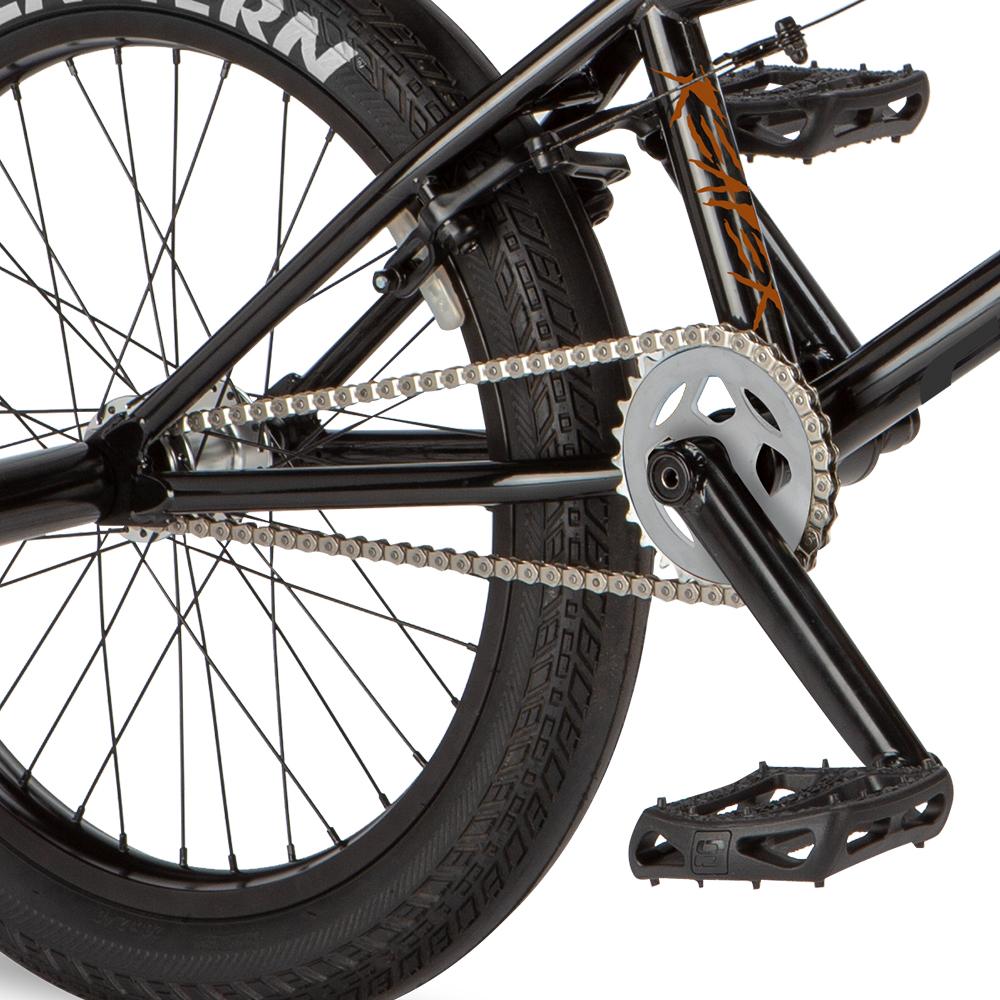

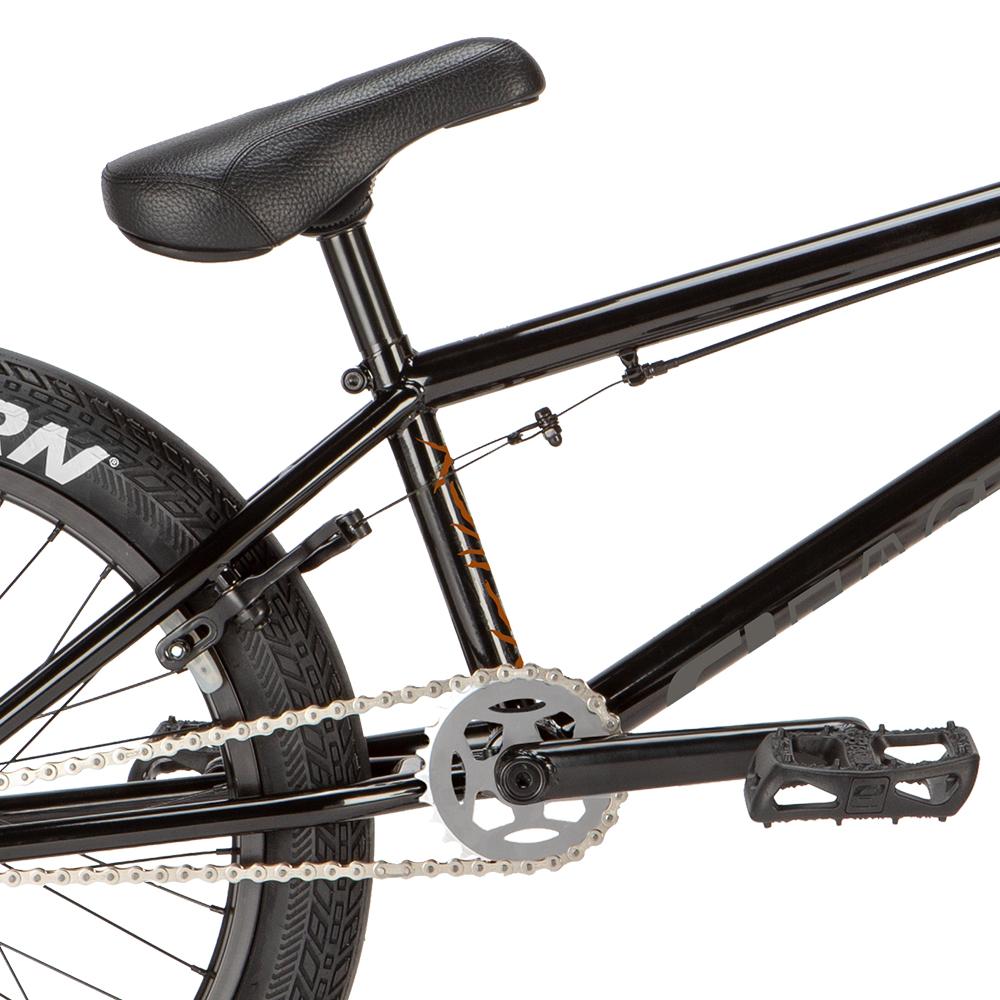

CRANK 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Alloy, 28T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Facet pedal with 9/16" Chromoly Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR

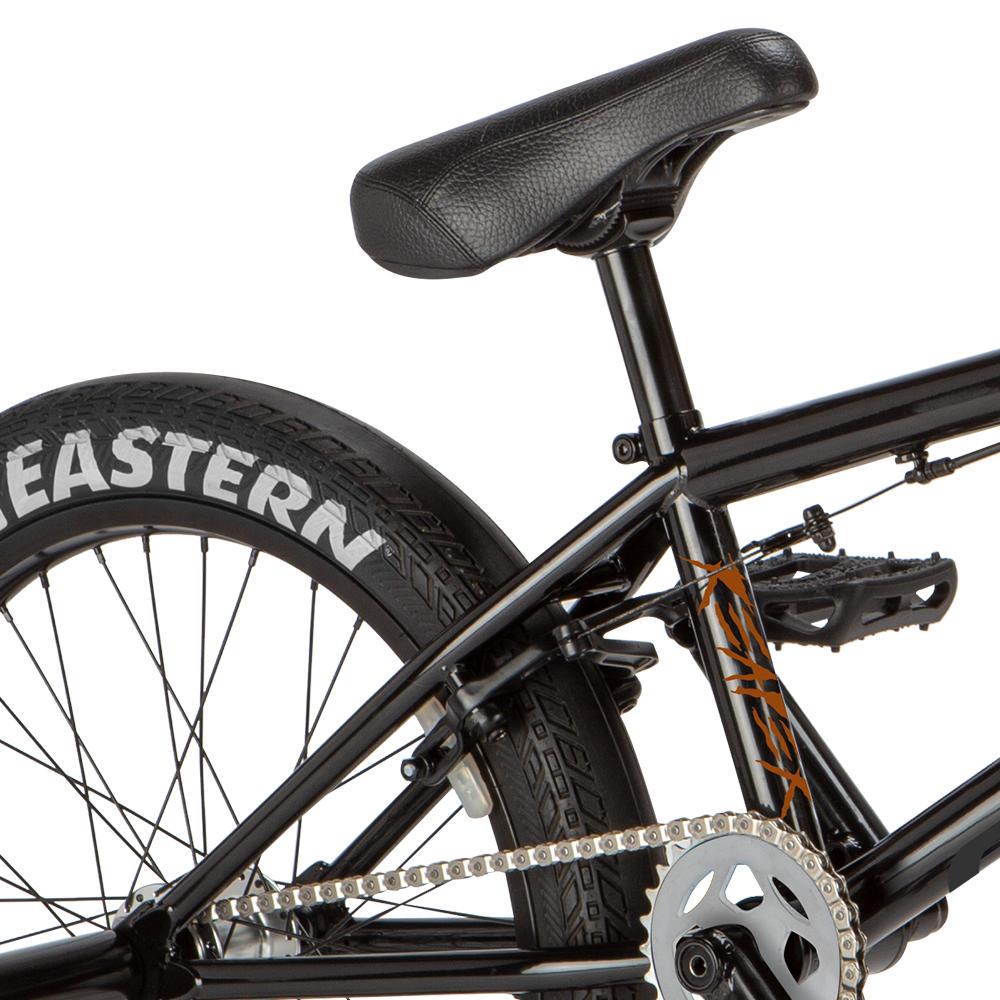

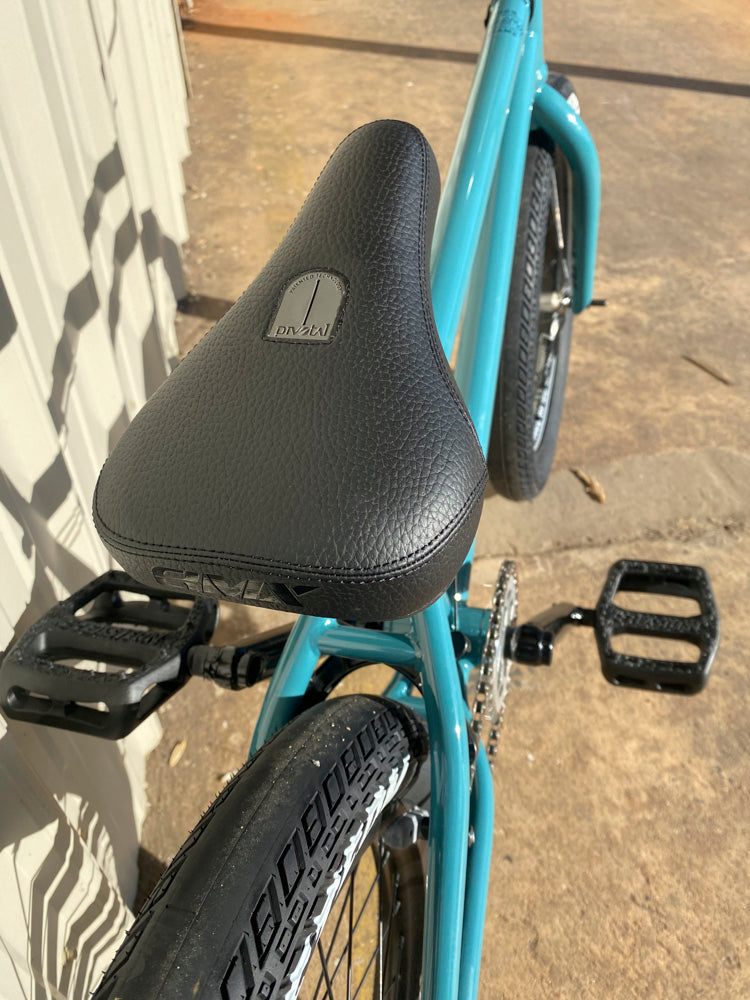

SADDLE Medium Width Pivotal Seat
POST Pivotal, Alloy, 200mm

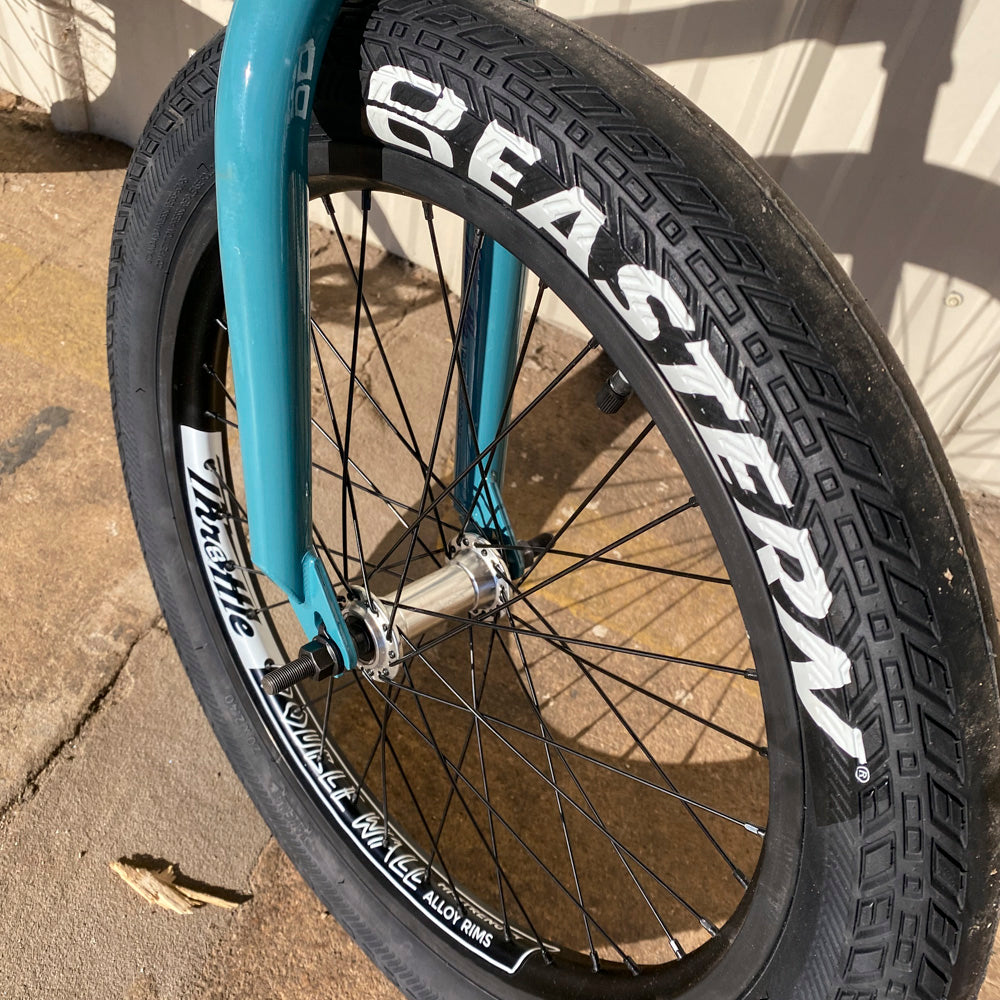

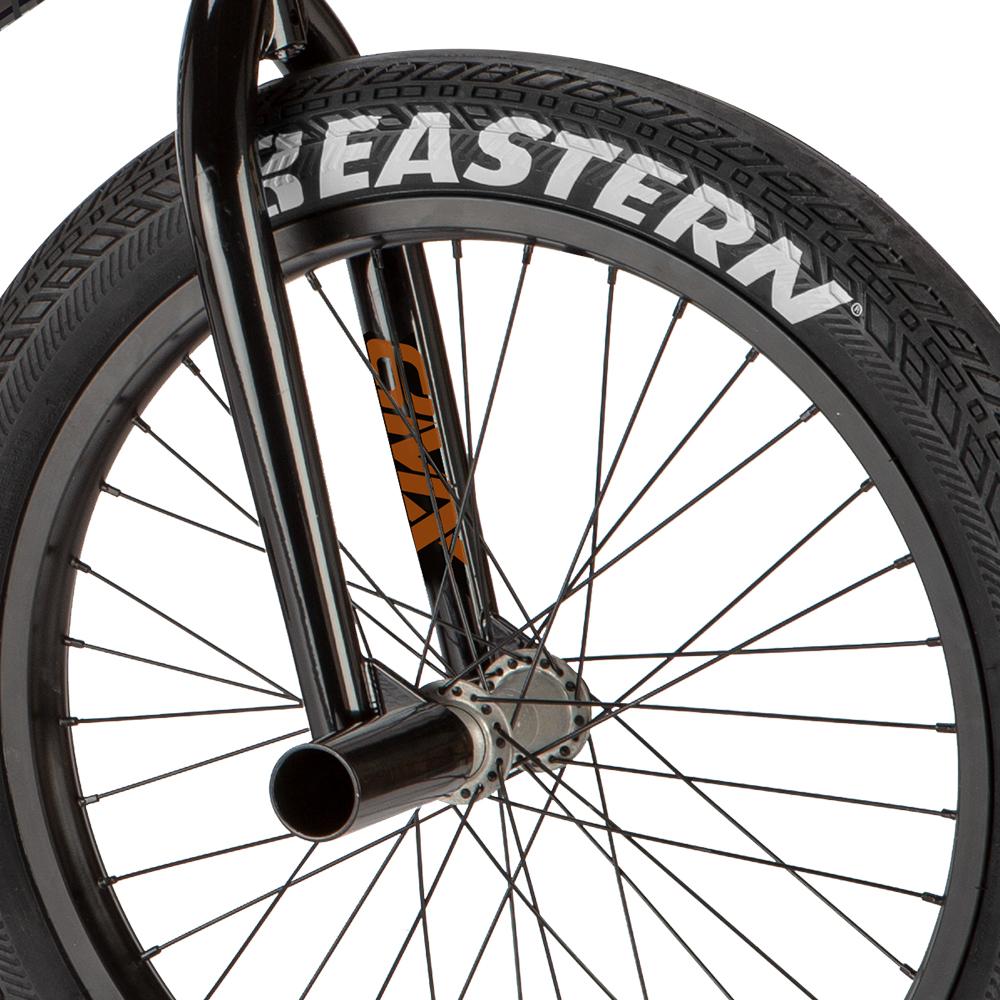

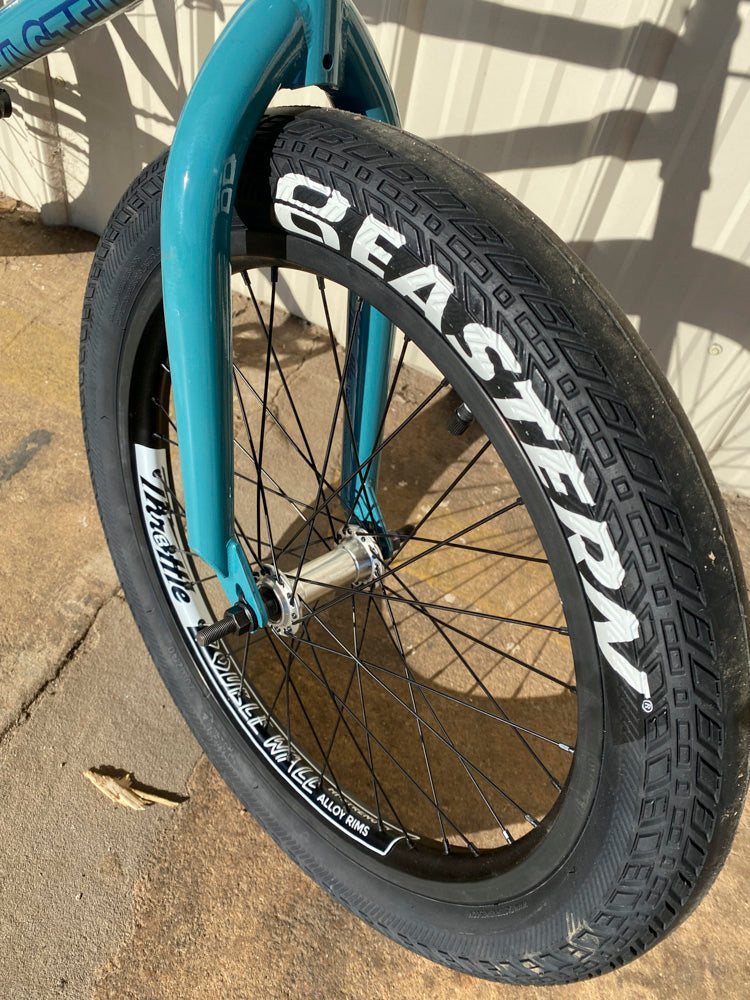

FRONT HUB FRONT HUB Sealed Bearing, Forged Alloy Shell, Drilled for 36
Spokes, 3/8" Chromoly Axle

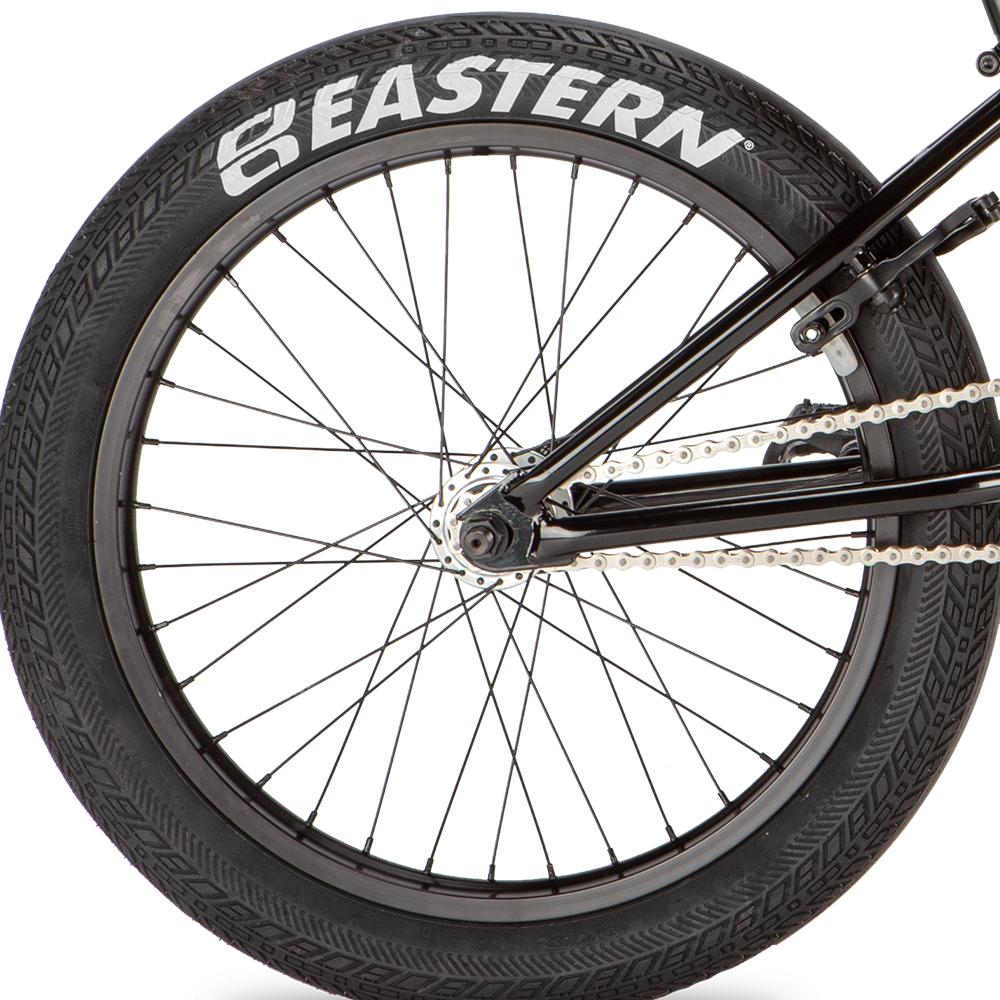

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for
36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Sealed Driver with Hub

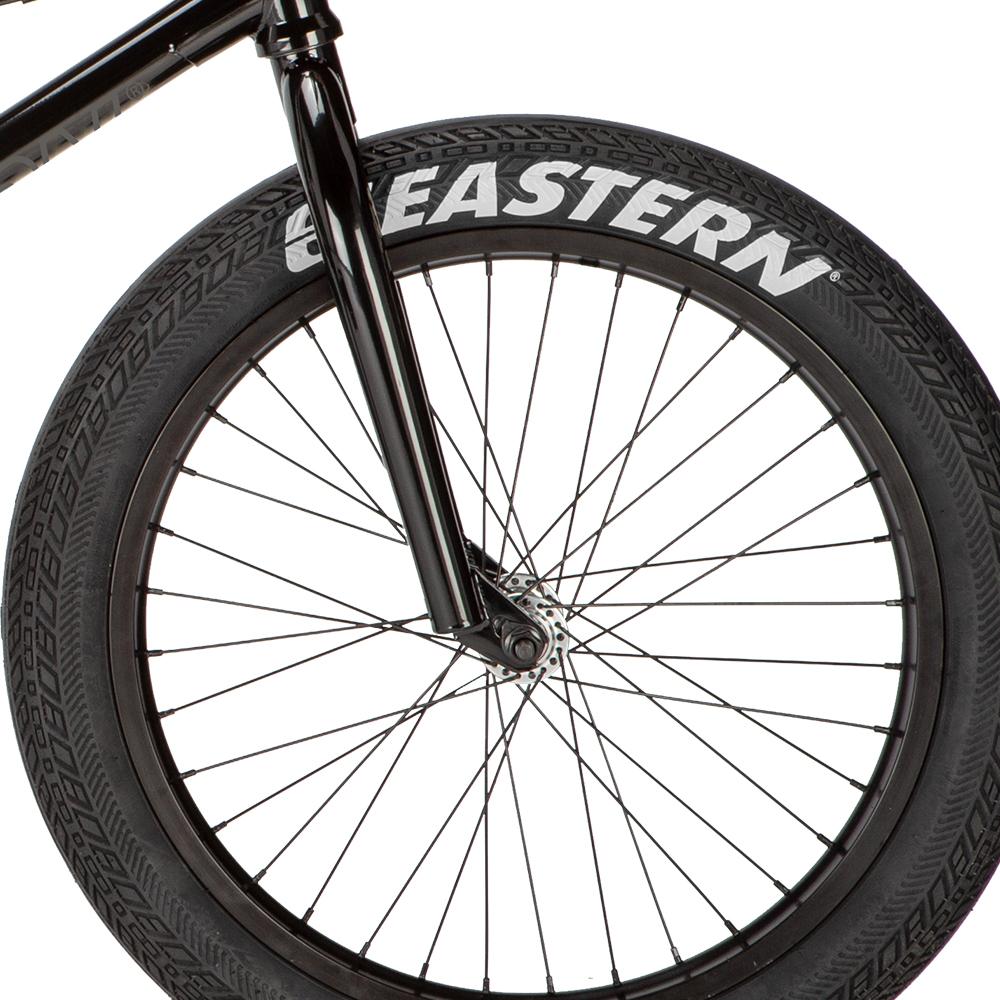

FRONT RIM 7000-Series Aluminum, Fusion Welded, Double Wall, Drilled for 36 Spokes, For 20" Tires
REAR RIM 7000-Series Aluminum, Fusion Welded, Double Wall, Drilled for 36 Spokes, For 20" Tires
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE Eastern Squealer 100psi 20 x 2.40
REAR TIRE Eastern Squealer 100psi 20 x 2.40
PEG Eastern Slim Pegs. Chromoly with Internal Machining to Save Weight. (2pcs)
Bikes are designed for riders 13 years old and up. *This pricing valid in USA only. Specs & pricing Subject to Change
